Engineered Architectural Solutions: Catalog Highlights
Direct factory supply of precision-machined aluminum sliding doors, thermal break casement windows, and specialized building fenestration systems certified for international building codes.
Hvac Removable Ceiling Access Manhole Hatch Trap Door Aluminum Panel
Fast Action Insulated Aluminum High Speed Door for Exterior Industrial Entrances
Large Sliding Glass Doors for Patio Aluminum Frame Thermal Insulation Double Glass

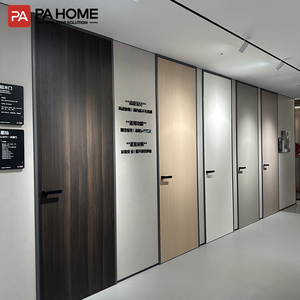

PA Modern Design Hotel Furniture Interior Slim Indoor Aluminium Profile Wooden Doors

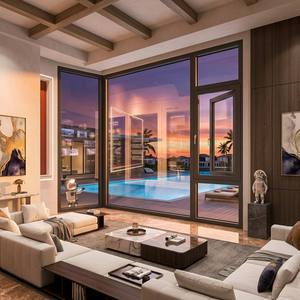

HUACAI Waterproof Anti-theft Aluminium Casement Window with Built-in Magnetic Blinds
CA Title 24 Custom Aluminum Energy Saving Low E Double Glazed Tilt and Turn Window

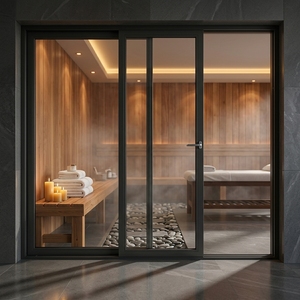

Balcony Patio Aluminum Windows and Doors Energy Efficiency Hurricane Impact Sliding Door

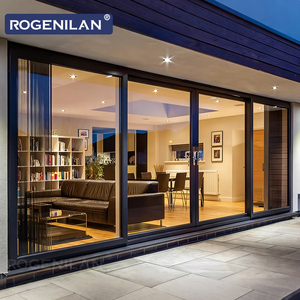

ROGENILAN Custom Aluminum Heavy Duty Double Glass Patio Lift and Slide Door
Architectural Fenestration Whitepaper: Technical Benchmarks for Aluminum Sliding Door and Window Systems
In modern architectural engineering, specifying structural aluminum sliding door and window systems requires balancing visual transparency, structural integrity, thermal efficiency, and acoustic isolation. As global building codes enforce stricter energy conservation standards (such as NFRC ratings, California Title 24, and AS2047 standard guidelines), procurement teams must transition from evaluating raw unit costs to assessing long-term structural reliability and thermal performance numbers.
As an established OEM/ODM factory based in Foshan—China’s premier aluminum manufacturing cluster—BrioWindow Technology Co., Ltd. produces architectural-grade fenestration packages designed specifically for high-end residential villas, multi-family developments, and commercial high-rises across North America, Australia, Europe, and over 60 countries worldwide.
1. Structural Alloy Metallurgy & Extrusion Geometry
The foundation of a high-span aluminum sliding door system lies in its metallurgical composition. We utilize 6063-T5 and 6063-T6 architectural grade aluminum alloys. Extruded to precise tolerances, these profiles feature a minimum wall thickness ranging from 2.0mm to 3.0mm for heavy-duty structural sliding patio doors, ensuring deflection limits remain within design criteria under extreme wind pressure (tested to ASTM E330 standards).
- Tensile Strength: Yield strength exceeding 170 MPa for T5 temper and 210 MPa for T6 temper, resisting torsional deformation in oversized spans.
- Profile Depth: System frame depths ranging from 120mm to 200mm multi-track profiles, allowing integration of flyscreens, security meshes, and hurricane storm shutters.
- Surface Finish Technology: Electrostatic fluorocarbon PVDF powder coating (AkzoNobel / PPG resins) and marine-grade anodizing (25-micron thickness) to guarantee salt-spray resistance exceeding 3,000 hours under ASTM B117 standards.
Thermal Break Insulation
Engineered with PA66GF25 (25% fiberglass reinforced polyamide) thermal barrier strips, reducing conductive heat transfer to achieve U-values under 1.4 W/m²K when combined with Low-E double glazing.
Hurricane Impact Rating
Designed with heavy-duty structural corner keys and laminated glass interlayers (PVB/SGP) capable of passing large missile impact tests (ASTM E1996) for coastal hurricane zones.
Acoustic Attenuation
Multi-chamber extrusions paired with dual EPDM sealing gaskets achieve Sound Transmission Class (STC) ratings up to 42 dB, blocking urban noise pollution effectively.
2. Technical Specification & Performance Matrix
The following performance matrix illustrates typical structural and thermal benchmarks available across BrioWindow’s core product lines:
| System Category | Thermal U-Factor (W/m²K) | Wind Pressure Resistance | Water Tightness | Air Infiltration | Glazing Options |
|---|---|---|---|---|---|
| Heavy Duty Sliding Door | 1.6 – 2.0 | Class 4 (ASTM E330) | 450 Pa (EN 12208) | Class 4 (EN 12207) | 6mm+12Ar+6mm Low-E Double Glazed |
| Ultra-Slim Interlock Sliding Door | 1.8 – 2.2 | Class 3.5 | 350 Pa | Class 3 | 8mm+14Ar+8mm Toughened Glass |
| Thermal Break Tilt & Turn Window | 1.2 – 1.5 | Class 5 (High Pressure) | 600 Pa | Class 4 (Super Airtight) | 5mm+18Ar+5mm Low-E Triple Glazed |
| Hurricane Impact Sliding Door | 1.7 – 2.1 | DP Rating +/- 70 PSF | 700 Pa | Class 4 | 6mm + 1.52SGP + 6mm Laminated Low-E |
Future Procurement Trends in Architectural Fenestration (2025–2030)
As global construction practices evolve toward decarbonization, smart automation, and occupant wellness, developers and procurement managers must align their supply chains with key upcoming trends:
1. Minimalist Sightlines with Structural Flush Thresholds
Architectural demand is moving rapidly toward continuous indoor-outdoor living transitions. Future-focused procurement favors sliding doors with interlock widths reduced to 20mm–25mm while hiding frames within building reveals. Concurrently, flush sill track systems with concealed sub-drainage prevent tripping hazards while managing torrential rainfall runoff.
2. Smart Motorization & Smart Home Automation Integration
Commercial luxury developments increasingly specify automated sliding glass panels integrated with Smart Home IoT protocols (Zigbee, Z-Wave, KNX, RS485). Motorized drive systems concealed within the top header track enable quiet, touch-free operation, automatic obstruction sensing, and rain-sensor auto-closure.
3. Low-Carbon Aluminum Sourcing & Circular Economy Compliance
With Carbon Border Adjustment Mechanisms (CBAM) taking effect in Europe and North America, buyers are prioritizing suppliers utilizing hydro-powered recycled aluminum billets. BrioWindow’s commitment to sustainable raw metal sourcing helps project developers achieve LEED and BREEAM environmental certifications.
4. High-Performance Integral Venetian Blind Glazing
Integrated magnetic and motorized blinds sealed permanently inside dust-free double-glazed units are replacing traditional window treatments in modern hotels and medical institutions, offering zero maintenance, enhanced privacy, and superior solar heat gain coefficient (SHGC) control.
Why Global Importers Partner with BrioWindow Technology
Operating from Foshan, Guangdong—China’s primary hardware and extrusion hub—BrioWindow brings over a decade of specialized export experience. We serve real estate developers, window importers, and general contractors in North America, Australia, and Western Europe with direct factory pricing, fully customizable shop drawings, and strict QA protocols before shipment.
Get a QuoteFrequently Asked Questions for B2B Buyers & Developers
Find practical technical guidance regarding structural custom fabrication, freight logistics, hardware choices, and factory QA standard procedures.
What aluminum profile alloy standard does BrioWindow use for export orders?
We primarily extrude high-grade 6063-T5 and 6063-T6 virgin aluminum alloy billets. For structural curtain walls and extreme wind-load sliding doors, we offer 6061-T6 reinforcements. All profiles adhere to GB5237 (Chinese National Standard) and ASTM B221 specifications.
Can BrioWindow manufacture doors and windows according to custom architectural drawings?
Yes. Our in-house fenestration engineering team generates AutoCad CAD shop drawings and 3D BIM models based on your project opening schedules. We adjust extrusion profiles, thermal breaks, glazing build-ups, and hardware fixings to meet local structural wind load and thermal energy requirements before cutting raw materials.
What hardware brands are integrated into your sliding doors and windows?
We supply top-tier international hardware including Siegenia, Hoppe, Roto, and GU (Germany), alongside premium Chinese hardware systems (CMECH, Kin Long). Hardware selection is optimized based on panel weight, cycle-test durability (50,000+ operations), and coastal anti-corrosion requirements (SS304/SS316 stainless steel components).
How are glass units tested and certified for safety and energy efficiency?
All glass units are processed with SGCC (North America), CE (Europe), and AS/NZS 2208 (Australia) certified toughened safety glass. We offer Low-E coatings (Single, Double, or Triple Silver Low-E), argon gas filling, warm-edge spacers, and laminated PVB/SGP interlayers for impact resistance and acoustic dampening.
What after-sales support and quality assurance warranties are provided?
We provide a comprehensive 30-year structural warranty on extruded aluminum frames, a 10-year warranty on insulating glass unit seals against condensation, and a 5-year warranty on moving hardware components. In addition, we supply installation manuals, video walkthroughs, and spare hardware kits with every export shipment.
What is the typical factory lead time and export packaging standard?
Standard fabrication lead time is 25 to 35 days after final shop drawing approval and deposit receipt. Products are protected using a 5-layer export packaging protocol: protective scratch film, corner guards, EPDM foam wrapping, waterproof plastic film, and heat-treated solid fumigated wooden crates suitable for sea freight container shipping.
Ready to Request a Factory-Direct Technical Quote?
Whether you are sourcing custom thermal break aluminum sliding doors for a luxury residential villa or specifying high-volume commercial casement windows, our engineering team is ready to analyze your window schedule.
