Flagship Aluminum Crittall & Interior/Exterior Door Systems
Engineered for luxury residential villas, boutique hospitality, and modern commercial projects. Certified to AS2047, NFRC, and CE standards.
Executive Summary: Re-engineering Heritage Steel Glazing with Architectural Aluminum
The iconic Crittall style door—characterized by sleek black steel profiles, grid-like glazing bars (Simulated Divided Lites / SDL), and industrial minimal aesthetic—originated in the late 19th century. Historically fabricated from hot-rolled carbon steel, traditional steel Crittall doors presented significant architectural trade-offs: extreme weight requiring structural steel lintels, high susceptibility to atmospheric oxidation in coastal or humid environments, poor thermal insulation performance ($U$-factor $> 5.0 \, \mathrm{W/m^2K}$), and high custom fabrication costs.
As a leading premier aluminum Crittall style doors factory & exporter based in Foshan, China, BrioWindow Technology Co., Ltd. has led the engineering evolution of this aesthetic. By substituting mild steel profiles with high-precision, extruded T6063-T5 architectural aluminum alloys integrated with multi-cavity polyamide thermal barrier breaks (PA66-GF25), modern aluminum Crittall systems deliver authentic industrial aesthetics while fulfilling contemporary carbon-neutral building energy codes worldwide (such as Title 24 in California, NCC in Australia, and Part L in the UK).
Technical Material Benchmarking: Carbon Steel vs. Standard Aluminum vs. BrioWindow Thermal Break Aluminum Crittall Systems
| Performance Metric | Traditional Hot-Rolled Steel | Standard Non-Thermal Aluminum | BrioWindow Architectural Thermal Break Aluminum |
|---|---|---|---|
| Thermal Transmittance ($U$-Value) | Poor ($4.8 - 5.5 \, \mathrm{W/m^2K}$) | Moderate ($3.8 - 4.5 \, \mathrm{W/m^2K}$) | Superior ($1.4 - 1.9 \, \mathrm{W/m^2K}$) |
| Frame Sightline Width | 25mm - 35mm | 30mm - 50mm | 15mm - 28mm (Ultra-Slim Minimalist) |
| Corrosion & Salt Spray Resistance | Low (Rusts without galvanized priming) | High (Standard Anodized) | Maximum (AkzoNobel / Qualicoat Fluorocarbon Coating) |
| Structural Weight / Hinge Load | Heavy ($> 45 \, \mathrm{kg/m^2}$) | Light ($12 - 18 \, \mathrm{kg/m^2}$) | Optimized ($18 - 25 \, \mathrm{kg/m^2}$) |
| Acoustic Insulation Rating (STC / R_w) | STC 28 - 32 dB | STC 30 - 34 dB | STC 38 - 45 dB (Double PVB Laminated Glass) |
| Airtightness & Water Penetration | Low-to-Medium (Single EPDM seal) | Medium (Dual EPDM rubber strip) | Triple Compression EPDM + Iso-Bar Sealing |
Core Architectural Engineering Innovations
How our factory overcomes structural deflection, thermal bridging, and acoustic leaks in slim-profile metal framing.
Structural Integrity & Wind Pressure Resistance
Utilizing high-tensile 6063-T5 aluminum alloy extrusions with 2.0mm to 3.0mm wall thickness, engineered to withstand extreme wind load pressures exceeding 3000 Pa (compliant with ASTM E330 and AS2047 design pressures).
PA66-GF25 Polyamide Thermal Barriers
Integrated 24mm continuous polyamide insulating strips isolate outer weather exposure from interior ambient temperatures, preventing condensation formation and minimizing energy loss across seasons.
Precision Simulated Divided Lites (SDL)
Customizable glazing grid bars attached using high-durability structural adhesives and mechanical interlocking mechanisms. Delivers vintage steel look without sacrificing single-pane cleaning convenience.
Future Global Sourcing Trends in Aluminum Crittall Doors (2025–2030)
As international architectural preferences pivot toward wellness, daylight optimization, and net-zero energy design, commercial real estate developers, hospitality groups, and residential importers are reshaping their procurement criteria for metal fenestration systems. Based on trade volume analysis across North America, Europe, Australia, and the Middle East, our technical research team has identified four mega-trends driving future procurement:
1. Seamless Indoor-Outdoor Transition via Ultra-Slim Sliders & Folding Crittall Systems

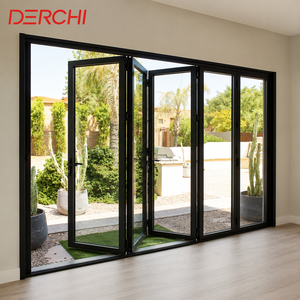

Traditional Crittall systems were primarily limited to inward/outward swing doors and fixed room dividers. Today’s luxury architectural market demands massive openable spans. Sourcing is rapidly shifting toward high-load bi-fold accordion doors and multi-track sliding Crittall doors with middle sightlines under 20mm, supported by stainless steel heavy-duty bottom rollers capable of handling panel weights up to 400kg.
2. Advanced Thermal Glazing & Low-E Solar Control Coatings
The global push for zero-carbon architecture requires fenestration products to maintain strict Solar Heat Gain Coefficients (SHGC $< 0.25$) and low U-values. Importers are increasingly pairing aluminum Crittall frames with double or triple insulated glass units (IGUs) containing argon gas fill, warm-edge spacers, and double-pass Low-E coatings to prevent thermal bridging while keeping frame sightlines razor-thin.
3. Architectural Finish Durability: Anodized Metallic & Matt Qualicoat Powder Coatings
While matt black (RAL 9005) remains the baseline color choice for Crittall style doors, high-end hotel developments and coastal luxury villas are requesting specialized physical vapor deposition (PVD) finishes, anodized bronze, champagne gold, and micro-textured fluorocarbon (PVDF) coatings. These specialized surfaces withstand coastal salt-fog spray tests (AAMA 2605 / Qualicoat Class 2) for over 3,000 hours without chalking or fading.
4. Smart Motorization & Hardware System Integration
The integration of automated door control systems—including magnetic drive sliding motors, biometric fingerprint recognition handles, and smart home IoT automation—is transitioning from a luxury option to a standard specification requirement in high-end commercial and residential procurement projects.
Why Global Importers & Architects Partner with BrioWindow Technology Co., Ltd.
Located in Nanhai District, Foshan City—China's global capital for aluminum extrusion and advanced fenestration manufacturing—BrioWindow Technology Co., Ltd. operates over 10+ specialized production lines covering raw profile extrusion, thermal break assembly, CNC machining, glass lamination, and automated assembly.
Rigorous Export Certification Standards
Our full door product range is engineered to meet or exceed rigorous international performance certifications, including Australian Standard AS2047 / AS1288, North American NFRC / AAMA testing protocols, and European CE marking.
End-to-End Engineering & CAD/BIM Support
We provide overseas developers and general contractors with complete shop drawing assistance, 3D structural calculation modeling, and customized elevation schedules to eliminate installation risk before container loading.
30-Year Warranty & Quality Guarantee
Backing our precision manufacturing is a robust 30-year structural warranty on aluminum profiles and 10-year warranty on insulating glass seals and premium German hardware components (G-U, Siegenia, Hoppe).
Protected Heavy Duty Overseas Packaging
Every unit is shrink-wrapped with peelable protective film, corner-armored, wrapped in EPE foam, and encased in fully sealed, IPPC ISPM-15 compliant fumigated plywood crates for damage-free ocean transportation.
Frequently Asked Sourcing & Technical Questions (FAQ)
Key insights to facilitate direct factory sourcing, quality compliance, and international shipping logistics.
Interior aluminum Crittall doors focus primarily on slim visual sightlines, smooth sliding/swinging operation, and acoustic partitioning (using non-thermal profiles with 8mm to 12mm single or laminated toughened glass). Exterior Crittall doors require heavy-duty thermal break profiles (PA66-GF25 insulation strips), multi-point lock systems, perimeter double-EPDM gasket seals, and double/triple glazed low-E units to prevent rainwater penetration, handle thermal insulation ($U < 1.8 \mathrm{W/m^2K}$), and resist high wind loads.
Yes. As a direct factory manufacturer, 100% of our orders are produced to custom architectural opening dimensions. We fabricate customized arched tops, fixed transom combinations, specialized corner configurations, and custom Simulated Divided Lite (SDL) grid arrangements tailored to project architectural blueprints.
Our export door systems undergo rigorous testing according to Australian Standard AS2047 / AS1288 (tested for air infiltration, water resistance, structural deflection, and ultimate limit state) as well as North American NFRC thermal standards and hurricane impact testing protocols (ASTM E1886 / E1996) for coastal wind-borne debris zones.
Standard lead times for engineering shop drawing confirmation and powder coating production range between 25 to 35 calendar days. Custom anodized finishes or specialized curved/arched structural configurations typically require 35 to 40 days prior to export container loading at Foshan or Guangzhou ports.
To receive an itemized factory quotation, please click the "Get a Quote" button to connect directly with our engineering team. Prepare your project window/door schedules, opening dimensions, preferred profile finish (e.g., Matt Black RAL 9005), glass configuration, and destination port. Our engineers will provide a comprehensive proposal within 24 hours.
