Export-Ready Systems
Featured Double Glazed Aluminum Windows & Doors
Engineered in Foshan to satisfy stringent NFRC, CSA, and AS2047 structural and thermal standards for luxury residential and commercial projects.
Industry Leader Supplier Patio Balcony Sliding Doors Double Glazing Aluminium Clad Wood Door Residential Exterior Glass Doors
Contact Us
Andexin Weather Resistant Wood Look Aluminum Garage Door Stable Performance For Outdoor Building
Contact Us
Large Modern Internal Lockable Accordion Sliding Aluminum Bifold Folding Double Glass Patio Doors
Contact Us
High Security Aluminum Bi-Fold Door with Multi Point Locking System for Villa Entrance and Large Opening Design
Contact Us
High Performance Thermal Break Aluminum Windows Double Glazed Soundproof Casement Windows For Hotel Apartment Projects
Contact Us
Wazzor Nfrc Heavy Duty Large Double Tempered Glass Noiseless Sliding Door and Windows Exterior Balcony Patio Glass Aluminum Door
Contact Us

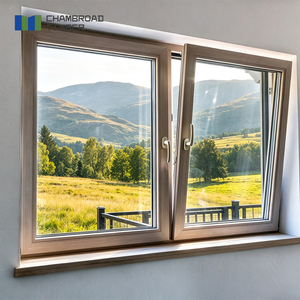

Modern Wood Aluminum Window Casement Fireproof Anti-Theft Double Glazed Insulated Glass CSA Certified For Office
Contact Us
Fenestration Engineering White Paper
Technical Benchmark: Sourcing Premium Double Glazed Aluminum Windows from China
In modern architectural design, fenestration is no longer merely a passive aesthetic boundary; it functions as a primary engine of structural resilience, acoustic isolation, and building envelope thermal control. When sourcing from a premier China aluminum double glazed windows supplier, global procurement teams, facade consultants, and general contractors must evaluate systemic thermal break profiles, insulated glass unit (IGU) gas retention dynamics, and hardware load capacity under extreme atmospheric conditions.
Information Gain Insight: The performance of an aluminum window assembly is dictated by the thermal bridge strategy within its multi-chamber extrusion. Standard non-thermal break profiles exhibit thermal conductivity values ($\lambda$) of approximately $160 \text{ W/m}\cdot\text{K}$. By integrating high-density Polyamide PA66-GF25 structural insulation strips, thermal conductivity across the profile is reduced to under $0.3 \text{ W/m}\cdot\text{K}$, eliminating interior condensation risk and dramatically lowering whole-window U-factors.
1. Advanced Profile Metallurgy & Thermal Break Engineering
High-grade aluminum fenestration relies on primary 6063-T5 or T6 alloy extrusions, which provide high tensile strength ($\ge 160 \text{ MPa}$) and excellent resistance to wind loads (ultimate wind pressure tolerance up to 5000 Pa under standard ASTM test methods). BrioWindow Technology Co., Ltd. incorporates precision-milled multi-chamber aluminum frame designs engineered specifically to separate interior and exterior climate zones.
Thermal Barrier (PA66-GF25)
Reinforced with 25% glass fiber, offering matching thermal expansion coefficients with aluminum to prevent frame delamination under high thermal cycles.
Triple Gasket Sealing
Continuous co-extruded EPDM weatherstripping creates an air-tight Isobaric Rain Screen chamber, ensuring air infiltration ratings $\le 0.1 \text{ L/s}\cdot\text{m}^2$.
Corner Injection Precision
Corner joints feature cast-aluminum cleats fastened with pneumatic crimping, followed by two-component epoxy sealant injection for zero joint leakage.
2. Insulated Glass Unit (IGU) Physics & Acoustic Performance
Double glazed window performance depends directly on IGU construction. Standard configurations manufactured at our Foshan facility combine dual 5mm or 6mm fully tempered safety glass panes separated by warm-edge Technoform spacers (12A, 16A, or 20A cavities) filled with 90%+ concentration Argon gas.
- Low-Emissivity (Low-E) Coatings: Double or triple silver vacuum magnetron sputtered coatings reflect long-wave infrared radiation, driving Solar Heat Gain Coefficients (SHGC) down to 0.22 while maintaining visible light transmittance (VLT) above 68%.
- Acoustic Isolation (STC/OATC): By utilizing asymmetrical glass pane thickness (e.g., 6mm exterior + 16A + 8mm interior) or PVB/SGP acoustic laminated interlayers, sound transmission class (STC) ratings reach up to 45 dB, dampening urban traffic noise effectively.
Data Visualization & Specs
Window System Specification & Specification Matrix
Comparative structural and energy metrics for international architectural procurement.
| System Type | Profile Depth | Thermal Break Strip | Glass Configuration | U-Factor (W/m²·K) | Wind Load Standard |
|---|---|---|---|---|---|
| AS2047 Soundproof Awning | 65mm - 80mm | 24mm PA66-GF25 | 6mm Low-E + 12A + 6mm Toughened | 1.4 - 1.8 | AS2047 / AS1288 (Australia) |
| Heavy Duty Balcony Sliding | 120mm - 190mm | 20mm PA66-GF25 | 6mm + 16Ar + 6mm Low-E | 1.6 - 2.0 | NFRC / AAMA (North America) |
| Multi-Point Security Bi-Fold | 75mm - 90mm | 28mm PA66-GF25 | 5mm + 14Ar + 5mm Laminated | 1.5 - 1.9 | BS EN 12608 / CSA A440 |
| Thermal Break Casement (Hotel/Apt) | 70mm - 108mm | 34mm Multi-Chamber | 6mm Low-E + 16A + 6mm + 1.52PVB | 1.1 - 1.4 | CE / ISO 9001 / EN 14351-1 |
| Alu-Clad Wood Architectural | 88mm - 125mm | Solid Oak/Pine + Thermal Break | 5mm Triple Glazed Low-E | 0.9 - 1.2 | Passive House Institute Specs |
Market Forecast & Intent Mining
Future Procurement Trends: Where Aluminum Window Manufacturing is Heading
As international energy frameworks transition toward Net-Zero Energy Buildings (NZEB) and embodied carbon accounting (EPD certifications), B2B sourcing strategies for aluminum windows from China are evolving rapidly. Importers and commercial project developers should align their supply chains with four critical trends:
1. Ultra-Narrow Sightlines & Minimalist Interlocks
Architectural demand favors hidden frames and ultra-slim center interlocks (16mm to 21mm visible width) without sacrificing structural deflection limits ($L/175$).
2. Smart Motorization & IoT Integration
Automated chain actuators linked to smart building management systems (BMS) with wind, rain, and air quality sensors are moving from luxury additions to core specs.
3. Decarbonized Extrusions & Recycled Aluminum
Procurement bids increasingly require post-consumer recycled aluminum billets ($>75\%$ recycled content) extruded using renewable energy to satisfy ESG criteria.
Manufacturing Excellence from Foshan, China
BrioWindow Technology Co., Ltd. operates in the Nanhai District of Foshan City—the epicenter of global aluminum extrusions. For over 10 years, we have provided factory-direct supply, tailored engineering assistance, CAD/BIM shop drawings, and rigorous testing for projects in the USA, Canada, Australia, and over 60 countries.
Buyer Knowledge Base
Frequently Asked Questions for B2B Window Procurement
What key certifications should I require when importing aluminum windows from China?
For North America (USA & Canada), request NFRC thermal ratings (U-factor, SHGC) and AAMA/WDMA/CSA 101/I.S.2/A440 compliance. For Australia, windows must pass AS2047 (air infiltration, water penetration resistance, and ultimate strength) and AS1288 glass selection standards. European projects require CE marking under EN 14351-1. BrioWindow provides full factory test reports and documentation for overseas customs and building authority approvals.
How does BrioWindow ensure glass unit vacuum seal integrity during ocean transport?
Thermal pressure variations during ocean transit or elevation changes can stress double glazed IGUs. We utilize dual-sealed silicone structural sealant over primary butyl sealant edge barriers. For high-altitude destinations, atmospheric capillary tubes or pressure-equalization valves are installed to prevent glass deflection or seal failure during transport.
Can BrioWindow manufacture custom profile shapes according to architectural drawings?
Yes. Our in-house engineering team reviews architectural DWG/PDF drawings, window schedules, and structural wind load requirements. We offer custom extrusion die tooling, specialized hardware integration (German Siegenia, Hoppe, or CMECH), and custom surface finishes including Fluorocarbon (PVDF) spraying, Powder Coating (AkzoNobel), and Anodizing.
What information is required to receive an accurate factory-direct quotation?
To provide a detailed quotation, please supply: (1) Window & door schedules with rough opening dimensions; (2) Preferred opening types (casement, sliding, tilt-turn, bifold); (3) Glass performance requirements (double/triple glazed, Low-E, acoustic laminated); (4) Profile finish/color specifications; and (5) Project location for structural wind-load calculation.
What after-sales warranty and engineering support does BrioWindow provide?
We provide a 30-year structural warranty on extruded aluminum frames, a 10-year warranty on insulated glass units against seal failure, and a 5-year warranty on hardware mechanisms. Additionally, our engineering team offers remote technical installation guidance and structural calculation documentation for local site engineers.
Ready to Partner with China’s Premier Aluminum Window Manufacturer?
Direct factory pricing, customized structural design, and world-class thermal efficiency engineered for your next residential or commercial project.
