Featured Aluminium Coated Door & Window Systems
Precision-engineered extrusion profiles featuring advanced powder coating, PVDF fluorocarbon finishes, hurricane impact glass, and thermal break technology engineered for global residential and commercial projects.
Customized Aluminum Alloy Outdoor Courtyard Sliding Doors Hurricane-Resistant Double Tempered Glass Silent Sliding Living Room

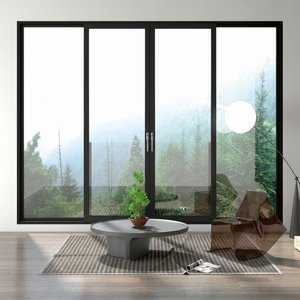

Modern American Style Waterproof Sliding Tempered Glass Doors with Aluminum Alloy Frame for Villa and Living Room Partition

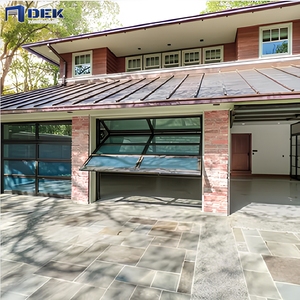

Modern Aluminum Alloy Frameless Folding Glass Doors Finished Surface Vertical Bi-Fold Garage Door for Outdoor Workshop Hotels
Hurricane Impact Sliding Windows Soundproof Double Glazed Aluminum Alloy Window House Horizontal Sliding Window
French Exterior Entry Main Modern Glass Arch CE Certified Black Power Interior Exterior Insulation Made Of Aluminium Doors

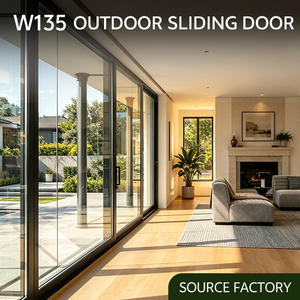

Factory Supply Windproof Waterproof Aluminium Double Tempered Glass Energy Efficient High Quality Sliding Door
Aluminum Horizontal Folding Glass Window For Indoor Patio Residential Projects Custom Size Double Glazed Tempered Glass

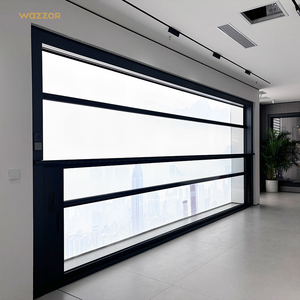

Wazzor Electric Lift Window | Motorized Vertical Operation Upward Electric Aluminum Windows Sliding Lift Window
Evaluating Top China Aluminium Coated Doors Manufacturers & Factories
An in-depth analysis of surface treatment technology, structural alloy selection, and factory verification metrics for global architects, real estate developers, and wholesale importers.
When sourcing architectural fenestration systems from China, selecting top-tier aluminium coated doors manufacturers requires analyzing metallurgical capabilities, structural profile engineering, and surface coating longevity. China's main architectural manufacturing hub—centered in Foshan, Guangdong—produces over 40% of the world’s premium architectural aluminum profile extrusions. Advanced automated vertical powder coating lines and PVDF fluorocarbon spraying systems allow Chinese factories to meet stringent global durability standards such as AAMA 2604, AAMA 2605, Qualicoat Class 2, and Qualicoat Seaside specifications.
Coated aluminum doors combine high structural strength-to-weight ratios with exceptional weatherability. Modern architectural specifications demand profile extrusions fabricated from primary 6063-T5 or 6063-T6 aluminum alloys. These extrusions undergo multi-stage chemical pretreatment—including alkaline degreasing, acid etching, and chrome-free zirconium conversion coating—prior to electrostatically applied polymer coatings. This process ensures paint adhesion, prevents filiform corrosion, and withstands harsh coastal environments exposed to salt spray and high UV radiation.
PVDF Fluorocarbon Sprayed Surface
Formulated with 70% Kynar 500 / Hylar 5000 resins, offering 20-30 years of color retention, chalk resistance, and defense against atmospheric degradation in harsh tropical or coastal regions.
PA66GF25 Thermal Break Strips
Precision-inserted Polyamide 66 reinforced with 25% glass fiber creates an insulated thermal barrier between interior and exterior extrusions, drastically dropping U-values to under 1.4 W/m²K.
Electrostatic Powder Coating
Solvent-free thermosetting polyester or polyurethane powders fused at 200°C offer impact resistance, scratch resistance, and limitless custom RAL color matching options for interior partition doors.
Aluminium Coating Technology Specification Matrix
Compare surface finish specifications to select the appropriate coating system for your target geographical market and project architectural requirements.
| Coating Technology | Resin / Chemical Base | Film Thickness | Salt Spray Resistance | UV Durability | Primary Application |
|---|---|---|---|---|---|
| PVDF Fluorocarbon (2-Coat/3-Coat) | 70% PVDF Kynar 500 Resin | 30 - 45 μm | > 4,000 Hours (ASTM B117) | Superior (30+ Years) | High-Rise Exterior Doors & Coastal Villas |
| Architectural Powder Coating | Thermosetting Super-Durable Polyester | 60 - 80 μm | > 1,500 Hours (ASTM B117) | High (10-15 Years) | Residential Sliding & Bi-Fold Doors |
| Wood-Grain Heat Transfer (Sublimation) | Polyurethane Base + Vacuum Film Transfer | 60 - 75 μm | > 1,200 Hours | Medium to High (8-12 Years) | Courtyard, Entry & Interior Partition Doors |
| Hard Anodizing + Electrophoresis | Electrolytic Oxide Layer + Acrylic Seal | 15 - 25 μm | > 3,000 Hours | Excellent Color Stability | Minimalist Slim-Frame & Commercial Systems |
Strategic Sourcing Trends in Architectural Aluminum Doors
Key technological transformations driving international procurement decisions over the next decade.
1. Micro-Slim Sightlines & Concealed Frame Assemblies
B2B buyers are increasingly moving toward ultra-narrow profile systems (interlock widths down to 16mm - 22mm). Manufacturers are engineering structural silicone glazing (SSG) techniques and reinforced hidden steel sub-stiffeners to handle oversized glass panels up to 6 meters high while retaining smooth operation.
2. Passive House & Triple-Glazed Thermal Integration
With North American and European energy codes demanding lower overall window-wall U-factors (U < 0.8 W/m²K), top Chinese factories are combining multi-chambered thermal break profiles with argon-filled triple LOW-E insulated glass units (IGUs) and Warm-Edge spacer bars.
3. Motorized Smart Automation & IoT System Integration
Demand for smart lift-and-slide doors, motorized vertical upward lift windows, and concealed magnetic levitation drives is surging. Advanced factories are pre-wiring motor channels, sensor ports, and smart home control protocol interfaces (Zigbee, Matter, RS485) directly into the coated aluminum door frame during manufacturing.
4. Carbon Neutrality & Circular Recycled Aluminum Profiles
Global developers prioritize suppliers utilizing low-carbon primary aluminum billets (smelted via hydro-electric energy) and post-consumer recycled aluminum alloys. Eco-certified chromate-free surface coating processes are becoming mandatory for European and Australian import compliance.
BrioWindow Technology Co., Ltd.
Headquartered in Nanhai District, Foshan, Guangdong—China’s premier aluminum manufacturing base—BrioWindow is a specialized manufacturer and global exporter of high-performance aluminum alloy doors and windows.
Global Export Footprint
Exporting to 60+ countries worldwide, with deep specialization in North American (USA, Canada) and Australian building codes (AS2047, NFRC, Florida Building Code impact compliance).
Full Product Ecosystem
Integrated production of sliding doors, casement swing doors, vertical bi-folds, central axis pivot doors, curtain walls, smart motorized systems, PVC windows, and fire-rated assemblies under one roof.
30-Year Quality Guarantee
Backed by strict internal QC testing, high-grade EPDM rubber seals, German hardware partners (Siegenia, Hoppe, GU), and factory pre-shipment trial assembly checks.
How to Audit China Aluminium Coated Door Manufacturers
Essential verification steps to mitigate international procurement risks and ensure seamless jobsite installation.
1. Verify Profile Wall Thickness
Ensure heavy-duty sliding doors feature structural wall thicknesses of at least 2.0mm to 3.0mm in load-bearing frames, adhering to Chinese National Standard GB/T 8814 and international structural wind load requirements.
2. Inspect Glass Unit Certification
Confirm double or triple glazed units are double-sealed with butyl primary sealant and structural silicone secondary sealant, bearing SGCC (USA), AS/NZS 2208 (Australia), or CE EN 12150 safety glass marks.
3. Enforce Export Packaging Protection
Demand protective blue masking film on coated surfaces, corner plastic caps, bubble wrap wrapping, and steel-reinforced, fully enclosed plywood crates to prevent shipping scratches during ocean freight.
Frequently Asked Procurement Questions
Clear answers regarding technical customization, minimum order quantities, lead times, and factory capabilities.
