Beigeman Villa Big Picture Window Low-E Double/Triple Glazed
Heavy-duty aluminum casement picture window featuring soundproof insulated glass, PA66 thermal breaks, and structural wind resistance.
Inquire Now
Precision Fenestration Systems
Featured Architectural Door & Window Product Systems
Engineered in Foshan, China for global export. Certified performance for residential luxury, commercial towers, and coastal hurricane resilience.
Eloyd Custom Modern Aluminum Glass Sliding Doors
Waterproof hurricane impact lift-and-slide door system engineered for luxury garden villas with a 5-year comprehensive factory warranty.
Inquire Now
AAMA Thermal Break Aluminum Stacker Multi-Point Lock Door
High-performance double insulated glass patio entry system with multi-point hardware and extreme windproof weather sealing.
Inquire Now
Customized White Aluminum French Folding Bifold Patio Door
Seamless indoor-outdoor bifold system with ultra-slim aluminum profiles, durable stainless steel rollers, and thermal efficiency.
Inquire Now
Aluminum Scaffolding Board Trap Door Platform with Ladder
Industrial-grade structural aluminum safety access hatch and ladder assembly designed for heavy commercial site utility.
Inquire Now

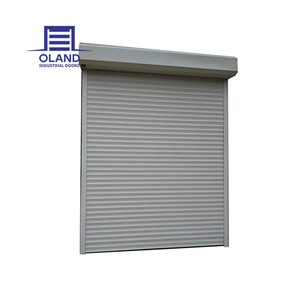

Exterior Electric Windproof Aluminum Roller Shutter Door
Heavy-duty motorized roll-up door system providing high security, thermal insulation, and hurricane protection for storefronts & warehouses.
Inquire Now
Concealed Access Hatch Aluminum Frame HVAC Maintenance Panel
Smooth access inspection panel engineered with invisible aluminum frames for seamless modern interior wall and ceiling integration.
Inquire Now
Modern Interior Aluminium Glass Arched French NFRC Doors
Custom engineered curved arch casement door system with manual opening, premium powder coating, and thermal glass certification.
Inquire Now60+
Global Export Markets
30-Year
Quality Assurance
PA66-GF25
Thermal Break Standard
U ≤ 0.8
Passive House Capability
Executive Technical Briefing
Navigating Chinese Fenestration Manufacturing: Aluminium & Timber Engineering Standards
Global real estate developers, architectural procurement heads, and general contractors face an increasingly complex sourcing landscape. When procuring high-performance aluminium and timber windows and doors from Chinese manufacturing hubs—most notably Foshan, Guangdong—evaluating supplier capability goes far beyond initial unit price quotes. True value lies in frame metallurgy, thermal barrier engineering, timber moisture stabilization, and rigorous international testing compliance (AAMA/WDMA/CSA 101/I.S.2/A440, NFRC, and EN 14351-1).
1. Aluminium Profile Metallurgy & Alloy Performance Dynamics
The structural backbone of any high-end modern window system rests on alloy specification. Leading export factories utilize primary-grade 6063-T5 and 6063-T6 aluminum extrusions, yielding tensile strengths exceeding 185 MPa and yield strengths above 160 MPa. Unlike recycled secondary aluminum, primary 6063 alloys exhibit exceptional dimensional tolerance, preventing frame warping under extreme structural wind loads (P3 ≥ 5000 Pa for high-rise commercial installations).
Wall thickness compliance is equally critical. For premium residential sliding and bifold doors exported to North America and Australia, wall thickness must adhere to minimums of 2.0mm to 3.0mm for load-bearing profiles. Electrostatic fluorocarbon (PVDF) coatings and AAMA 2605 powder coatings applied via automated vertical lines ensure color fastness, salt-spray resistance (>4000 hours), and protection against severe coastal UV degradation.
Profile Density & Strength
6063-T6 structural tempered alloy providing maximum deflection resistance for span openings up to 6 meters high.
PA66-GF25 Isolation
Polyamide thermal breaks reinforced with 25% glass fiber prevent thermal bridging between interior and exterior profiles.
Surface Fluorocarbon
AAMA 2605 compliant PVDF finishes resisting chalking, gloss retention loss, and marine-grade salt corrosion.
2. Thermal Break Science: PA66 GF25 vs. Pour-and-Debridge Systems
In high-latitude energy efficiency zones (e.g., US Northern Zones, Canada, Northern Europe), frame thermal performance dictates compliance with strict Energy Star and Passive House mandates. Elite Chinese window manufacturers have transitioned from low-performance polyurethane pour-and-debridge systems to multi-cavity Polyamide (PA66 GF25) strip technology.
The insertion of 24mm to 39mm PA66 strips reinforced with 25% short glass fibers matches the thermal expansion coefficient of aluminum, preventing shear failure under temperature swings from -30°C to +70°C. Coupled with multi-chamber profile designs and extruded insulation foam inserts (aerogel or expanded polyethylene), systemic U-factors drop below 1.2 W/m²K (U-0.21 BTU/hr·ft²·°F).
3. Aluminium-Clad Timber (Alu-Clad Wood) Sourcing & Engineering
For high-end residential estates where architectural aesthetics require interior organic warmth and exterior weatherproof resilience, Aluminium-Clad Timber systems (Alu-Wood) represent the pinnacle of fenestration design. Chinese specialized export factories source FSC-certified timber including European Larch, American White Oak, Teak, and Engineered Finger-Jointed Pine.
Key quality indicators for exported timber windows include:
- Controlled Kiln Drying: Timber moisture content is stabilized strictly between 8% and 12% to prevent interior checking, swelling, or joint separation post-installation.
- Floating Aluminum Attachment: Exterior protective aluminum cladding is attached via heavy-duty nylon clip systems, allowing independent thermal expansion between metal and timber without transferring stress.
- Four-Coat Water-Based Finish: Application of eco-friendly German Remmers or Adler waterborne coatings provides deep mold resistance, UV protection, and breathable timber sealing.
Technical Sourcing Matrix
Comparing Material Systems & Engineering Performance
Select the optimal window and door system based on climate zone requirements, structural loads, and energy efficiency goals.
| System Type | Structural Frame Material | Thermal Break Mechanism | U-Value Range (W/m²K) | STC Acoustic Rating | Optimal Project Application |
|---|---|---|---|---|---|
| Thermally Broken Aluminium | Primary 6063-T5/T6 Alloy (1.4 - 3.0mm) | PA66 GF25 Polyamide Strips (24-39mm) | 1.1 – 1.6 | 35 – 45 dB | Modern Commercial Towers, Coastal High-Rises, Luxury Villas |
| Aluminium-Clad Timber (Alu-Wood) | FSC Oak/Larch Interior + Exterior Extrusion | Natural Wood Thermal Isolation + Air Cavity | 0.79 – 1.2 | 40 – 48 dB | Luxury Estates, Cold-Climate Passive Houses, Heritage Renovations |
| Slim-Frame Panoramic Sliding | Reinforced Structural Alloy (Interlock 16mm) | Hidden Sub-Floor Thermal Profiles | 1.3 – 1.8 | 32 – 38 dB | Floor-to-Ceiling Patio Openings, High-End Rooftop Terraces |
| Heavy Hurricane-Impact Sliding | Extruded Structural Aluminium (3.0mm Wall) | High-Shear Composite Polyurethane/PA66 | 1.4 – 2.0 | 38 – 46 dB | Tropical Coastal Regions, Hurricane Zone Exposure (Florida/Australia) |
Future Procurement Dynamics 2025–2030
Global Trends Shaping China Window Sourcing & Supply Chains
As international building codes tighten around operational carbon emissions and embodied energy, the global sourcing matrix for doors and windows is evolving rapidly. Developers and procurement teams sourcing from China must align with four macro structural trends:
1. Triple & Quadruple Glazing Standardization
Driven by EU Net-Zero goals and North American IECC 2024 mandates, window specs are shifting from double Low-E to triple-pane (e.g., 6mm Low-E + 12Ar + 6mm Clear + 12Ar + 6mm Low-E) filled with 95% Argon gas and warm-edge Technoform spacers. Solar Heat Gain Coefficients (SHGC) are tuned precisely by climate zone, utilizing double-silver and triple-silver Low-E coatings (Sputtered Vacuum Deposition).
2. Smart Automation & Motorized Systems Integration
Modern luxury developments demand concealed automated hardware. Foshan manufacturing lines now directly embed low-voltage brushless DC drives, rain/wind sensors, and smart-home protocol chips (Zigbee/Matter/KNX) into aluminum profiles for automated skylights, massive pivot doors, and multi-panel motorized bifold doors.
3. Environmental Product Declarations (EPD) & Decarbonization
Institutional tenders increasingly demand ISO 14025 compliant EPD reports detailing the Global Warming Potential (GWP) per square meter of window frame. Premier Chinese exporters are adopting hydro-powered aluminum smelting sources and low-carbon extruded billets to reduce scope 3 emissions for overseas developers.
4. Modular & Prefabricated Wall Panel Systemization
To reduce expensive job-site labor costs in Australia, North America, and Western Europe, window factories are co-engineering ready-to-install fenestration units. Windows are shipped with factory-installed sub-frames, structural flashing fins, and integrated blind-between-glass (BBG) systems. This plug-and-play approach minimizes installer error and ensures waterproof flashing integrity at the perimeter wall envelope.
Factory Excellence & OEM/ODM Capabilities
Why BrioWindow Technology Leads China Export Fenestration
Operating from Nanhai District, Foshan—China's world-renowned aluminum processing hub—BrioWindow Technology Co., Ltd. provides complete end-to-end engineering, manufacturing, and global logistcs support.
Single-Source Manufacturing
Complete product ecosystem: Aluminium sliding, casement, bifold, timber-clad, PVC, fire-rated doors, curtain walls, and smart motorized openings under one single quality control framework.
30-Year Quality Assurance
Rigorous factory batch testing for air infiltration, water penetration resistance (up to 700 Pa), and structural deflections backed by comprehensive 30-year after-sales support.
Global Compliance & Exporting
Over 10 years of specialized export experience serving architects, importers, and developers across North America (USA, Canada), Australia, Europe, and 60+ countries worldwide.
Procurement Knowledge Base
Frequently Asked Sourcing Questions (FAQ)
Essential technical and commercial clarity for purchasing managers and commercial project developers.
What window and door systems does BrioWindow manufacture in China?
We specialize in manufacturing aluminum alloy folding doors, sliding doors, swing doors, casement windows, and sliding windows. Our product portfolio also includes high-performance timber-clad doors, PVC windows and doors, fire-rated doors, glass sunrooms, structural curtain walls, central axis pivot entrance doors, and smart motorized automated window systems.
How do Chinese aluminum windows compare with European (German/Italian) systems?
Top-tier Chinese manufacturers utilize identical high-grade raw materials—including primary 6063-T6 aluminum alloys, German PA66 GF25 thermal strips, and world-class hardware solutions such as Roto, Siegenia, Hoppe, and CMECH. Combined with advanced CNC machining tolerances and stringent quality control, Chinese factories deliver equivalent thermal (U-value) and structural performance at a 30% to 45% cost savings.
Can products be customized to architectural CAD drawings and local building codes?
Yes. Our engineering team conducts thorough structural shop drawing reviews for every project. We adapt frame depth, profile wall thickness, glass build-ups (e.g., impact-laminated glass for Florida HVHZ or triple-glazed Low-E for Canadian winters), and hardware specifications to meet exact structural wind-load and local energy code targets.
What structural and thermal documentation should I request prior to ordering?
Before issuing a purchase order, buyers should request mill test reports for 6063-T5/T6 aluminum, glass NFRC or CE thermal test certificates, air/water/wind laboratory test results (AAMA 101 or EN 14351-1), powder coating warranty documentation (AAMA 2604/2605), and detailed shop drawings specifying profile wall thickness and glass units.
What after-sales and warranty coverage is provided for international shipments?
We provide a comprehensive 30-year after-sales quality assurance framework covering profile structural integrity, powder coating adhesion, glass seal failure, and hardware function. In addition, we supply complete installation guidance manuals, technical video walkthroughs, and spare hardware replacement kits with every export container.
Ready to Frame Your Architectural Project?
Connect directly with our senior fenestration engineers in Foshan, China. Share your architectural drawings or opening schedule for an instant quote, technical recommendation, and sample package.
