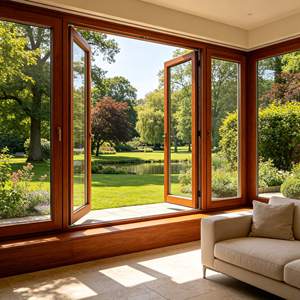

Factory Price Aluminum Wood Composite Casement Window High Performance Double Glazed Outswing Wood Window Manufacturer
Inquire Now
High Quality Standard Kitchen Aluminum Sliding Barn Door Philippines Exterior Tropical Design Weather Resistant for House
Inquire Now

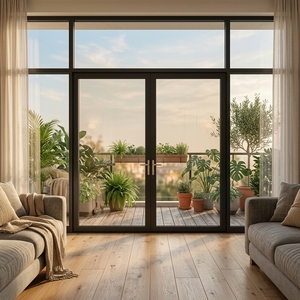

Customized Bulk Insulated Front Entry Doors French Doors Factory Direct Entry Aluminum Casement Doors
Inquire Now

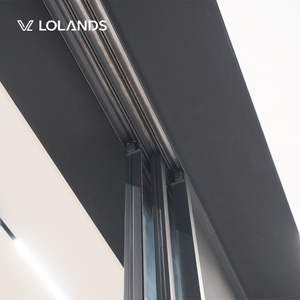

Lolands Slim Frame Aluminum Alloy Sliding Window Stainless Steel Custom Size for Courtyard Residential Projects 5-Year Warranty
Inquire Now
HANNOVER As2047 Australian Sliding Door Double Glazed Cavity Sliding Doors Exterior Stacking Balcony Aluminum Sliding Doors
Inquire Now
Folding Glass Door Sliding Glass Porch Panoramic Accordion Modern Courtyard Outdoor Interior Partition Bifold Doors
Inquire Now

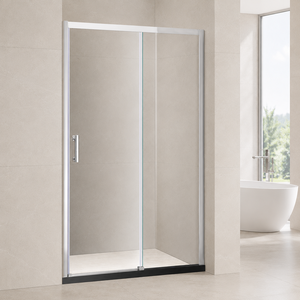

Bypass Sliding Shower Door Chrome Framed Tempered Glass Alcove Bathroom Custom Size Modern Design Factory Wholesale Supplier
Inquire Now

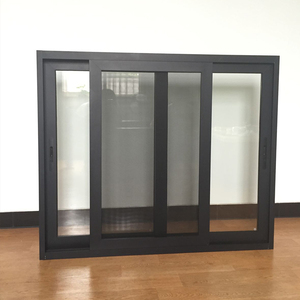

OUNA Basement Aluminum Sliding Window Small Size Horizontal Design Waterproof And Ventilation Ideal For Below Grade Installation
Inquire NowExecutive Summary: The Evolution of Aluminum Clad Patio Doors in Modern Architecture
In modern architectural design and high-performance building envelopes, aluminum clad patio doors represent the absolute pinnacle of material hybridization. By fusing the structural strength, low maintenance, and extreme weather resilience of exterior heavy-gauge extruded aluminum with the natural thermal insulation, biophilic warmth, and interior luxury of solid engineered timber, clad door systems resolve the historical trade-off between architectural aesthetics and physical durability.
As global energy conservation standards tighten—accentuated by updated ASHRAE 90.1 specs, North American NFRC energy codes, and European Passivhaus thermal efficiency requirements—architects, facade engineers, and commercial procurement directors are increasingly moving away from un-insulated vinyl or plain aluminum profiles. They are adopting hybrid aluminum clad wood systems for luxury residential developments, multi-family high-rises, and coastal villas.
Not all aluminum clad doors are engineered equal. Lower-tier manufacturers utilize thin 0.024-inch roll-formed aluminum skins wrapped over wood cores, which are prone to denting, thermal expansion strain, and sealant failure. Commercial-grade suppliers—such as BrioWindow and top-tier global brands—utilize heavy-duty extruded 6063-T5 aluminum profiles (minimum thickness 1.4mm to 2.0mm). Extruded cladding provides structural integrity, allows for powder coating or PVDF finishes exceeding AAMA 2605 standards, and incorporates an air cavity gap that prevents moisture entrapment between metal and timber.
Top 10 Aluminum Clad Patio Doors Manufacturers & Suppliers (Global Evaluation Matrix)
When specifying aluminum clad patio doors for mid-to-large-scale projects, sourcing directors must evaluate manufacturers based on extruded metal thickness, wood species integrity, hardware integration, thermal break technology, and factory-direct OEM capabilities. Below is an authoritative technical benchmark of the world's leading suppliers.
Headquartered in Foshan's premier industrial hub, BrioWindow leads the global OEM/ODM market with custom-engineered aluminum clad patio doors, lift-and-slide systems, and bi-fold doors. Utilizing 6063-T5 heavy aluminum extrusions paired with engineered oak or pine cores, BrioWindow delivers AS2047, NFRC, and CE certified systems to over 60 countries with a 30-year structural guarantee.
Renowned for its Signature Ultimate line, Marvin specializes in heavy extruded aluminum cladding combined with rich interior wood species. Their patio door solutions feature narrow sightlines, concealed multipoint locking mechanisms, and high resistance to extreme atmospheric conditions.
Andersen's E-Series offers custom aluminum clad patio doors with extensive anodized and fluoropolymer paint finishes. Designed for luxury homes, their doors provide robust thermal barrier breaks and high DP (Design Pressure) hurricane ratings.
Pella's Reserve line features historical authenticity with modern aluminum cladding capabilities. Their EnduraClad coatings resist fading and chalking, complemented by integrated smart home security sensors built directly into the sash frames.
A global leader in structural aluminum engineering, Schüco produces hybrid timber-aluminum sliding and bifold doors featuring polyamide thermal break strips, enabling U-values matching rigid Passivhaus requirements.
Specializing in Douglas Fir and Mahogany wood cores shielded by thick extruded aluminum cladding, Loewen patio doors are engineered specifically for high wind loads, alpine snowpack pressure, and severe coastal weather.
Austria’s premier manufacturer, Internorm, combines timber-aluminum composite designs with thermal foam insulation layers, offering sound reduction up to 45dB and industry-leading triple glass configurations.
The Premium Series by Weather Shield features thick aluminum exterior cladding with narrow frame profiles, maximizing daylight glass surface area for contemporary architectural openings.
Lincoln offers traditional craftsmanship in aluminum clad patio doors, integrating rot-resistant wood preservation treatments on internal timber with low-maintenance exterior aluminum profiles.
With global production facilities, JELD-WEN supplies aluminum clad wood patio door systems with AuraLast pine protection, serving volume tract builders, multi-family housing, and commercial hospitality developments.
Technical Specifications & Engineering Comparison Matrix
To assist architectural specifiers and import distributors in making technical decisions, the following data table details the core performance metrics across leading product configurations.
| Performance Feature | Extruded Clad (Commercial Grade) | Roll-Formed Clad (Standard Grade) | Unclad Wood Patio Doors |
|---|---|---|---|
| Alloy & Gauge | 6063-T5 / T6 Aluminum (1.4 - 2.5mm) | Sheet Aluminum (0.5 - 0.7mm) | None (Exposed Timber) |
| Thermal Performance (U-Factor) | 0.14 - 0.24 BTU/hr·ft²·°F | 0.26 - 0.32 BTU/hr·ft²·°F | 0.22 - 0.28 BTU/hr·ft²·°F |
| Finish Durability Rating | AAMA 2605 Fluoropolymer / PVDF | AAMA 2603 Standard Polyester | Exterior Paint / Stain (Requires 2-yr upkeep) |
| Structural Load (DP Rating) | DP50 to DP80 (Impact Resistant) | DP30 to DP45 | DP35 to DP50 |
| Air / Water Infiltration | EPDM Compression Triple Seal | Brush / Foam Tape Seals | Single-Lip Perimeter Gasket |
| Design Lifespan | 40+ Years (Minimal Maintenance) | 15 - 20 Years | 15 - 25 Years (High Maintenance) |
Technical & Engineering Development Trends (2026-2030)
The manufacturing ecosystem for aluminum clad doors is undergoing rapid technological advancements driven by energy mandates and modern structural requirements:
1. Advanced Polyamide Thermal Break Technology
Historical wood-clad doors relied solely on the timber core for thermal insulation. Modern thermal-break aluminum clad doors integrate multi-cavity glass fiber reinforced polyamide (PA66GF25) strips inside the aluminum cladding frame itself. This prevents thermal bridging from the exterior metal layer before heat or cold reaches the interior wood section, dropping full-assembly U-factors below 0.16 BTU/hr·ft²·°F.
2. Integrated Smart Motorized Roller Mechanisms
Luxury residential projects demand massive architectural panel openings, with single sliding glass sashes exceeding 3 meters in height and 400 kilograms in weight. Manufacturers are incorporating hidden magnetic levitation drives and smart motorized multi-point locks compatible with KNX, Control4, and automated building management systems (BMS).
3. Circular Carbon Footprint & EPD Certifications
Global architectural procurement now scrutinizes Environmental Product Declarations (EPDs). Leading manufacturers in Foshan like BrioWindow are shifting toward low-carbon recycled aluminum alloys (produced via hydroelectric power) combined with FSC-certified sustainably harvested timber, lowering embodied carbon by up to 40%.
Future Sourcing & B2B Procurement Trends
For distributors, real estate developers, and general contractors, procuring high-end architectural fenestration involves navigating international trade logistics, custom sizing specifications, and certification compliance.
Standard off-the-shelf sizes are giving way to 100% custom-tailored opening schedules. Overseas buyers are bypassing regional middlemen to work directly with engineering-focused factories that produce to precise shop drawings.
Global sourcing mandates local accreditation. Suppliers must provide third-party lab verification for AS2047 (Australia), NFRC/AAMA (USA), and CE markings (EU) prior to project dispatch.
To eliminate shipping damage, advanced manufacturers utilize steel-reinforced seaworthy wooden crates with glass vacuum packing, moisture-absorbent desiccant lining, and panel-indexed labeling for rapid site assembly.
Why BrioWindow Technology Co., Ltd. is Your Premier Manufacturing Partner
Located in Nanhai District, Foshan City—the epicenter of global aluminum extrusion and fenestration technology—BrioWindow Technology Co., Ltd. stands as a premier direct-factory manufacturer and exporter. With over a decade of dedicated specialization in aluminum sliding, swing, bi-fold, pivot, and smart window/door systems, BrioWindow serves high-profile projects across the USA, Canada, Australia, and over 60 countries.
Key Factory Strengths & Core Advantages:
- Structural Engineering Excellence: Every opening is engineered according to project wind loads, DP requirements, and thermal targets using heavy-gauge 6063-T5 aluminum extrusions.
- Comprehensive Material Versatility: Direct control over aluminum composite, PVC, solid timber, fire-rated doors, sunrooms, and unitized curtain wall systems under one roof.
- Rigorous Quality Assurance & 30-Year Guarantee: Pre-shipment laboratory testing ensures airtightness, water resistance up to 750 Pa, and acoustic isolation exceeding 40dB, backed by an industry-leading 30-year quality assurance warranty.
- Complete BIM & CAD Shop Drawing Support: Overseas partners receive full architectural support, from initial elevation drawings to exact hardware installation guides.
Frequently Asked Questions (Procurement FAQ)
Essential insights for architects, builders, and importers sourcing aluminum clad patio doors globally.
What is the main structural advantage of aluminum clad patio doors over solid wood doors?
How does BrioWindow handle custom sizes and project architectural drawings?
What thermal efficiency standards (U-Factor / SHGC) can be achieved?
Which export certifications are available for international building codes?
What information should be prepared to request a project quotation?
