Factory Direct Glazing Systems & Door Configurations
Engineered in Foshan, China—the world's premier aluminum extrusion hub—BrioWindow Technology Co., Ltd. delivers high-performance fenestration hardware built to meet rigorous US, European, and Australian building compliance codes. Explore our primary architectural export lines below.
Architectural Engineering White Paper: Custom Aluminum Glass Front Doors Sourcing
In modern high-end residential and commercial architecture, the entrance system serves as both a primary design statement and the first line of defense against atmospheric degradation, thermal energy loss, and physical breaches. For global B2B buyers—including real estate developers, commercial contractors, and fenestration importers—sourcing OEM/ODM Aluminum Glass Front Doors directly from audited Foshan factories provides a unique strategic advantage in balancing structural integrity, acoustic control, and cost competitiveness.
1. Structural Metallurgy & Polyamide Thermal Barrier Integration
Traditional non-thermal break aluminum frames suffer from high thermal conductivity (approx. 200 W/m·K), leading to significant energy loss and interior condensation. OEM manufacturing advances now mandate the integration of multi-cavity Polyamide (PA66GF25) thermal break strips. By separating the interior and exterior aluminum extrusions with glass-fiber reinforced polyamide strips, thermal bridging is effectively severed.
This technical execution reduces the overall frame U-Factor down to values as low as 1.2 to 1.6 W/m²·K when paired with double or triple-glazed Low-E Insulated Glass Units (IGU). Furthermore, the structural design accommodates expansion and contraction cycles without compromising the shear strength of the frame assembly.
Structural Integrity
Heavy-duty 6063-T5/T6 extrusions capable of supporting oversized pivot and bi-fold glass panels up to 400kg per leaf.
Thermal Performance
Multi-cavity PA66GF25 thermal breaks combined with double-sealed EPDM weather-stripping to eliminate drafts.
Acoustic Attenuation
Laminated acoustic glass interlayers (PVB/SGP) achieving STC ratings up to 42 dB for urban environments.
2. Surface Treatment Engineering: PVDF Fluorocarbon vs. Powder Coating
To resist coastal salt-spray corrosion, UV radiation, and mechanical scratching, BrioWindow offers three standardized architectural surface finishes:
- PVDF (Fluorocarbon Coating): Utilizing a minimum 70% Kynar 500 resin base, this 3-coat system provides unmatched chalking resistance and color retention for exterior building facades exposed to aggressive UV indices (AAMA 2605 compliant).
- Electrostatic Powder Coating: Applied at 60-80 microns thickness, providing a durable, high-impact surface available in custom RAL matte, satin, or textured wood-grain transfers (AAMA 2604 compliant).
- Anodized Finishes: An electrolytic oxidation process creating an integral aluminum oxide layer (Class I, 18+ microns) ideal for sleek, metallic architectural aesthetics.
Fenestration Engineering Performance Comparison Matrix
| Product System Category | Profile Alloy / Thickness | Standard Glazing Config | Wind Load Resistance | Thermal Transmittance (U-Value) |
|---|---|---|---|---|

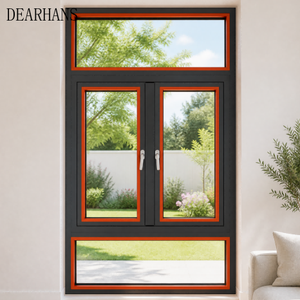

| Thermal Break Casement | 6063-T5 / 1.8mm - 2.0mm | 5mm + 12Ar + 5mm Low-E Toughened | Class 9 (≥ 5.0 kPa) | 1.4 - 1.8 W/m²·K |
| Heavy-Duty Pivot Doors | 6063-T6 / 2.5mm - 3.0mm | 6mm + 1.52SGP + 6mm Laminated | Class 8 (≥ 4.5 kPa) | 1.8 - 2.2 W/m²·K |

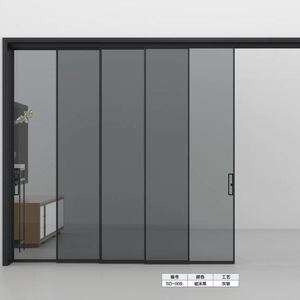

| Crittall Style Interior/Patio | 6063-T5 / 1.4mm - 1.8mm | 4mm + 9Ar + 4mm Clear Double Glazed | Class 5 (≥ 3.0 kPa) | 2.2 - 2.6 W/m²·K |
| Hurricane Impact Bi-Fold | 6063-T6 / 2.2mm - 2.5mm | 6mm + 1.52PVB + 6mm Insulated Impact | Class 10 (≥ 5.5 kPa) | 1.5 - 1.9 W/m²·K |
Future Global Procurement Trends in Aluminum Glass Front Doors (2026–2030)
1. Decarbonization & EPD Compliance
Global green building standards (LEED v4.1, BREEAM, and Net-Zero Energy frameworks) are forcing developers to mandate Environmental Product Declarations (EPDs) for structural materials. Sourcing low-carbon recycled aluminum (produced using hydroelectric power) combined with non-toxic powder finishes is becoming a non-negotiable procurement requirement across North America and Europe.
2. Motorized Smart Access Integration
Architectural front entrance doors are transitioning from mechanical keys to integrated smart access hubs. OEM specifications increasingly demand concealed electromagnetic multi-point locks, motorized pivot hinges linked to home automation protocols (Zigbee, Matter, RS485), and biometric/facial recognition sensors seamlessly embedded within flush aluminum handles.
3. Ultra-Slim Sightlines & Structural Glass
Modernist architecture continues to drive demand for minimal frame profiles ("micro-frame" or "invisible frame" doors). Procurement trends favor structurally bonded glass systems where the glass pane acts as an integral load-bearing element, reducing visible frame width to under 20mm while maintaining high structural wind resistance.
4. Turnkey OEM/ODM Co-Engineering
Importers are moving away from stock catalog buying to joint custom die creation. By partnering directly with Foshan exporters like BrioWindow, B2B buyers can custom-engineer proprietary profile extrusions, customized hardware mountings, and tailored packaging solutions designed specifically for rapid job-site installation.
Why Partner with BrioWindow Technology Co., Ltd.
Located in Lishui Town, Nanhai District, Foshan City—the recognized heart of China's aluminum industry—BrioWindow brings over a decade of specialized export experience to global construction projects. We manage every step of the manufacturing lifecycle under one roof.
Rigorous Lab Testing
Our products undergo rigorous domestic and international laboratory testing, verified against EN, NFRC, and AS2047 operational benchmarks.
Multi-Material Mastery
Comprehensive manufacturing capabilities covering aluminum alloy, PVC fenestration, solid wooden doors, fire-rated assemblies, sunrooms, and curtain walls.
Global Export Network
Active trade footprint across 60+ countries with primary core markets in the USA, Canada, and Australia, backed by a 30-year quality assurance warranty.
Frequently Asked Questions (B2B Procurement & Technical Specifications)
Ready to Specify Your Next Architectural Project?
Connect directly with BrioWindow's senior engineering and export team for custom shop drawings, technical compliance reviews, and competitive OEM factory quotes.
