High-Performance Aluminum Doors & Windows Portfolio
Engineered for commercial enterprises, luxury residential projects, and international B2B distributors. Fully customizable to regional building codes including NFRC, AS2047, and CE standards.

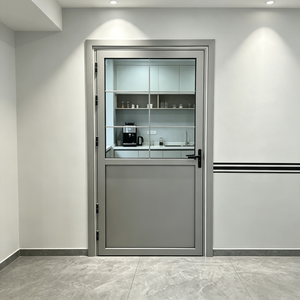

Factory Custom Half Glass Half Panel Aluminum Alloy Swing Door Waterproof Interior Door For Bathroom Home Villa
Inquire Now

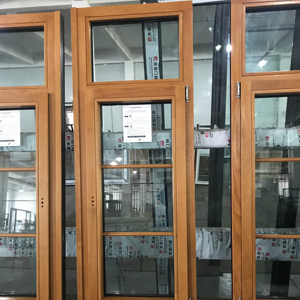

High Quality Energy Saving Swing Casement windows Aluminum-wood Window Composite windows
Inquire Now

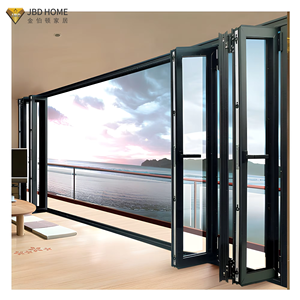

NFRC AS2047 Bi-fold Doors Seaside Hotel Hurricane Proof Outdoor Folding Doors Aluminum Exterior Balcony Folding Patio Doors
Inquire Now
Aluminum Sliding Glass Patio Doors Hurricane Resistant Sliding Glass Doors Patio Windproof Waterproof Sliding Doors
Inquire Now

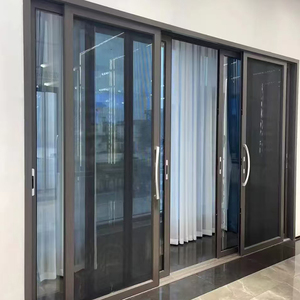

Factory Wholesale Popular High Quality Stable Aluminum Glass Sliding Door
Inquire Now

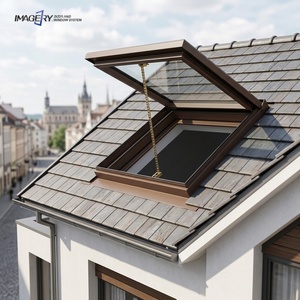

Balcony Electric Double Glazed Skylight Window Aluminum Tempered Low-E Glazed Skylights Roof windows for Exterior
Inquire Now

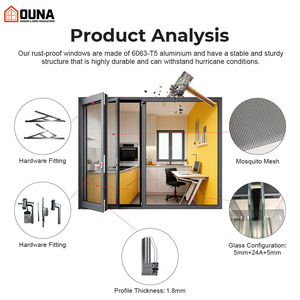

OUNA Hurricane Proof High Impact Black Aluminum Alloy Thin Profile Aluminium Windows And Doors Casement Window S For USA
Inquire Now

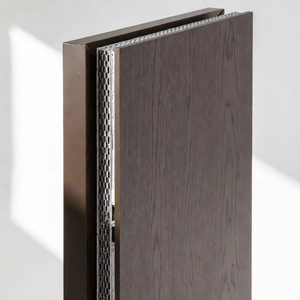

Minimalist Full Aluminum Alloy Interior Door with Honeycomb Core Manual Opening Finished Surface for Bedroom and Dining Rooms
Inquire NowEngineering Powerhouse from Foshan, China
BrioWindow Technology Co., Ltd. operates at the center of the world's most advanced aluminum manufacturing hub in Nanhai District, Foshan. For over a decade, we have redefined structural integrity, thermal efficiency, and aesthetic minimalism for worldwide architectural applications.
As an industry-leading OEM/ODM aluminum folding doors factory and supplier, BrioWindow specializes in bridging complex architectural visions with precision industrial manufacturing. Our production infrastructure spans heavy-duty profile extrusion lines, automated CNC machining centers, precision corner-crimping technology, and climate-controlled double/triple glazing assembly lines. By sourcing high-grade 6063-T5 and T6 structural aluminum alloys, our fenestration systems achieve superior structural deflection scores, resisting severe wind pressure, coastal salt-spray corrosion, and thermal expansion forces.
Our primary commercial export footprints cover high-specification markets including the United States, Canada, Australia, and Western Europe. Every bi-fold, sliding, swing, and smart window assembly undergoes multi-stage quality control checks aligned with rigorous international standards—including North American NFRC/AAMA protocols and Australian AS2047 certification requirements.
Engineering Anatomy of Architectural Aluminum Folding Doors
Understanding structural profile composition, thermal barrier technology, hardware load distribution, and multi-layer glazing configurations for long-term project reliability.
6063-T5/T6 Structural Alloys
Our extrusions use primary, non-recycled aluminum billets with wall thicknesses ranging from 2.0mm to 3.0mm for bi-fold sashes. This guarantees minimal deflection under high wind loads while maintaining slim, sleek sightlines.
Technoform PA66 Thermal Breaks
Equipped with imported Polyamide (PA66GF25) thermal barrier strips, our thermally broken bi-fold systems dramatically diminish U-factors down to 1.4 W/m²K, preventing thermal bridging and interior condensation.
Heavy-Duty Stainless Hardware
Top-hung and bottom-guided roller systems engineered with SUS316 stainless steel bearings. Capable of supporting up to 150kg per door panel for effortless, whisper-quiet glide operations across 50,000+ opening cycles.
Acoustic & Low-E Glazing
Standard double or triple-glazed units featuring Argon gas insulation, warm-edge swisspacers, Low-E coatings, and SGP/PVB laminated hurricane impact glass for acoustic attenuation up to 42 dB.
Advanced Surface Finishes
Offered in PPG Fluorocarbon PVDF coatings, AkzoNobel powder coating, and architectural anodizing (up to 25 microns). Resistant to UV fading, chalking, humidity, and intense coastal salt spray conditions.
Continuous EPDM Weather Stripping
Triple-sealed perimeter gaskets made from automotive-grade EPDM rubber ensure zero water penetration under driving rain (water tightness up to 750 Pa) and eliminate wind infiltration.
BrioWindow Architectural Folding Door Performance Specifications
| Performance Indicator | Standard Non-Thermal System | BrioWindow Thermal Break OEM System | Hurricane-Impact Villa System |
|---|---|---|---|
| Thermal Transmittance (U-Factor) | 3.2 - 3.8 W/m²K | 1.4 - 1.9 W/m²K (Energy Star Compliant) | 1.6 - 2.1 W/m²K |
| Wind Pressure Resistance | Class 3 (2.5 kPa) | Class 5 (4.0 kPa) | DP70 - DP90 (Severe Hurricane Rated) |
| Water Penetration Resistance | 250 Pa | 450 Pa - 600 Pa | 750 Pa (Subtropical Storm Proof) |
| Acoustic Insulation Rating (STC) | 28 dB | 38 dB - 42 dB | 40 dB - 45 dB (Laminated Glazing) |
| Max Panel Height / Width | 3000mm / 900mm | 3500mm / 1200mm | 4000mm / 1200mm |
| Surface Treatment Standards | Standard Powder Coat (30-50μ) | Qualicoat Class 2 / PVDF (60-80μ) | PVDF Triple Coat / 25μ Anodized |
Future Sourcing & Technology Development Trends (2025–2030)
Key structural shifts in global architectural demand, sustainability mandates, and intelligent building envelope technologies shaping the next era of fenestration procurement.
1. Ultra-Narrow Sightline Minimalist Profiles
Architectural preferences have shifted decisively toward ultra-slim vertical stiles (less than 30mm visible width) that maximize natural daylighting and unobstructed views. BrioWindow’s R&D department is pioneering high-moment-of-inertia aluminum alloys that permit reduced frame dimensions without compromising wind-load structural dynamics.
2. Net-Zero Carbon & High Insulation Mandates
With North America enforcing stricter Energy Star 7.0 protocols and Europe advancing Zero-Emission Building (ZEB) regulations, global procurement prioritizes ultra-low U-factor systems. Future sourcing trends heavily favor multi-cavity thermal break profiles paired with vacuum insulating glass (VIG) or electrochromic smart glass.
3. Motorized Smart Home Automation & IoT Integration
Bi-fold systems are evolving from manual mechanical operation to fully motorized, sensor-driven automatic systems. BrioWindow’s smart bi-fold series incorporates concealed heavy-duty electric actuators capable of integrating with KNX, Control4, and mobile app ecosystems, enabling automated rain-sensing closing and remote access management.
4. Zero-Threshold Flush Drainage Architecture
Barrier-free living solutions demand flush-floor transitions between indoor spaces and exterior patios. Future-ready procurement strategies rely on recessed stainless steel drain channels with hidden sub-surface drainage pathways, preventing interior water backflow even during extreme monsoon conditions.
End-to-End OEM/ODM Production Process
From initial architectural shop drawings to final ocean-freight crate packing, BrioWindow ensures flawless execution for custom commercial projects and private-label distribution.
BIM & CAD Engineering
Our engineering division analyzes structural wind loads, opening schedules, and local code demands, converting architectural drawings into precise CAD/BIM shop drawings for client approval.
Custom Die Extrusion
For custom OEM profile series, we offer custom die tooling within 15–20 days. Profiles are extruded from certified 6063 primary alloy and aged to T5 or T6 hardness specifications.
Precision CNC Milling
Automated 5-axis CNC machining centers drill hinge locations, lock cylinder pockets, drainage slots, and corner assembly joints with sub-millimeter tolerance, ensuring perfect sash fitting.
Surface Finishing & Coating
Profiles pass through automated pre-treatment baths followed by electrostatic powder coating or PVDF fluorocarbon spraying, guaranteeing uniform film thickness and maximum weather resistance.
Insulated Glass Assembly
Automatic glass cutting, washing, Low-E edge deletion, argon gas filling, and dual-seal structural silicone application take place in cleanroom environments to prevent internal fogging.
Mock-up QC & Export Packing
Every order undergoes 100% full-assembly mock-up testing in our factory. Units are then wrapped in protective film, corner-guarded, and secured in fumigated steel-reinforced plywood crates.
Frequently Asked Questions for Global Procurement
Key insights for overseas importers, architectural specifiers, project contractors, and regional distributors evaluating factory-direct door supply from Foshan, China.
Partner with Foshan’s Premier OEM/ODM Aluminum Folding Door Manufacturer
Whether you are specifying custom fenestration for a commercial hotel resort, designing high-end residential villas, or expanding your regional distribution catalog, BrioWindow delivers certified quality, factory-direct pricing, and uncompromised structural craftsmanship.
