Aluminum Folding Window Thermal Break Soundproof Bi Fold Window Kitchen Servery
Profile: 6063-T5 Thermal Break
Glass: Double Tempered Low-E
Factory-Direct Supply Range
Precision-Engineered Aluminium Door & Window Systems
Directly manufactured at our Nanhai Foshan facility. Engineered for extreme weather durability, high thermal efficiency, and modular architectural installation.
Multi Tracks Large Glass Thermal Break Hurricane Proof Balcony Sliding Doors
Wind Resistance: Class 4500Pa
Track Options: 2-Track / 3-Track
Minimalist French Interior Aluminum Honeycomb Core Wood Grain Swing Door
Core: High-Density Honeycomb
Finish: Fluorocarbon Grain
Custom Exterior NFRC AS2047 Waterproof Double Low-e Glass Bifold Sliding Doors
Certification: AS2047 / NFRC
Water Tightness: 600 Pa

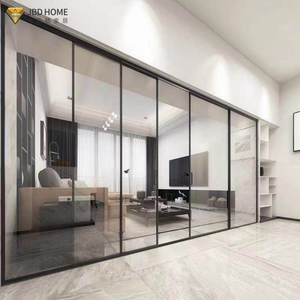

American Project NFRC Hurricane Impact Double Glass Sound Proof Sliding Door
Impact Glass: SGP Laminated
Sound Reduction: STC 42dB
AS2047 NFRC Electric Automatic Frame House Horizontal Sliding Windows
Automation: Tuya / Zigbee Motor
Frame Thickness: 2.0mm
Custom Energy Saving Low-E Glass Casement Double Glazed Tilt and Turn Window
Hardware: German SIEGENIA
U-Factor: 0.22 BTU/h·ft²·°F
Adjustable Modern Top Hung Sliding Window Friction Stay Awning Features
Hinge Material: SS304 Heavy Duty
Sealing: Triple EPDM Gaskets
10+ Years
Export Experience
60+
Global Markets Served
30-Year
Quality Assurance
100%
AS2047 / NFRC Tested
Technical Deep Dive & Material Engineering
Industrial & Residential Aluminium Shed Door Architectural Standards
An authoritative whitepaper breakdown of alloy specifications, thermal insulation mechanics, structural load coefficients, and anti-corrosion surface treatments for global procurement directors.
Why High-Spec Aluminium Is Replacing Steel and PVC in Shed & Outbuilding Enclosures
Modern commercial and residential outdoor structures require structural integrity without heavy weight penalties. High-grade 6063-T5 and 6061-T6 extruded aluminium alloys yield structural tensile strength exceeding 205 MPa, matching structural steel strength while delivering zero-corrosion longevity under harsh outdoor weathering conditions.
1. Profile Extrusion Metallurgy: 6063-T5 vs. 6061-T6 Engineering Parameters
For B2B buyers evaluating OEM/ODM aluminium shed door manufacturing, frame alloy selection dictates deflections under wind pressure, hinge load capacity, and thermal expansion properties. BrioWindow Technology Co., Ltd. utilizes structural-grade primary aluminium billets free from scrap metal impurities.
| Metallurgical Metric | 6063-T5 Extrusion Profile | 6061-T6 Heavy-Duty Profile | Standard Vinyl / PVC Frame |
|---|---|---|---|
| Tensile Ultimate Strength | ≥ 215 MPa | ≥ 310 MPa | ≥ 45 MPa |
| Yield Tensile Strength | ≥ 170 MPa | ≥ 275 MPa | ≥ 35 MPa |
| Webster Hardness (HW) | ≥ 12 HW | ≥ 15 HW | N/A (Soft Polymer) |
| Modulus of Elasticity | 69 GPa | 68.9 GPa | 2.8 GPa |
| Coastal Salt Spray Corrosion | Pass 3000 hr (C5-M rating) | Pass 3500 hr (C5-M rating) | Degrades under UV |
2. Thermal Break Structural Mechanics: PA66GF25 Insulation Technology
Uninsulated aluminium profiles feature high thermal conductivity (K = 200 W/m·K), which leads to thermal bridging, interior surface condensation, and loss of climate control in commercial storage sheds or residential garden workshops. Our OEM shed doors utilize polyamide PA66 reinforced with 25% glass fiber (PA66GF25) structural insulation strips inserted into dual-chamber extruded aluminium frames.
This design creates an engineered thermal barrier reducing the U-factor of the frame assembly from 5.8 W/m²K down to 1.4–1.8 W/m²K when integrated with warm-edge insulated glass units (IGUs).
Severe Weather Sealing
Multi-channel continuous EPDM automotive-grade gasket seals achieve air infiltration rates under 0.1 L/s·m² and water resistance up to 600 Pa test pressure.
UV & Thermal Stability
Polymer coatings certified under Qualicoat Class 2 standards prevent chalking, color fading (ΔE < 2), and embrittlement over 30 years of direct solar exposure.
Structural Honeycomb Cores
Interior aluminium doors feature non-combustible aerospace-grade hexagonal aluminium honeycomb cores for flat rigid panels without flexing or warping.
Market Intelligence
Global Sourcing & Procurement Trends in Outdoor Architectural Fenestration
Critical technical evolution driving international procurement strategies for real estate developers, shed manufacturers, modular home builders, and architectural distributors.
1. Low Carbon & EPD Compliance
International building codes (such as EU Green Deal and US Title 24) require Environmental Product Declarations (EPD) detailing embodied carbon metrics. Procurement is shifting rapidly toward recycled aluminium billets extruded using hydroelectric power.
2. IoT Motorization & Smart Integration
Automated sliding, awning, and roller shed doors integrated with smart building systems (Zigbee, Z-Wave, Tuya) now represent over 35% of premium residential shed and sunroom door inquiries globally.
3. Hurricane & Wind Impact Certification
Extreme climate events have tightened structural standards across North America and Australia. Importers require tested AS2047 (N6 rating) and NFRC hurricane-impact certified glass (SGP laminated Interlayer) as standard baseline specifications.
Comparative Procurement Matrix by Door System Type
| Door System Category | Recommended Profile Depth | Ideal Architectural Application | Thermal U-Value Range | Acoustic Rating (STC) |
|---|---|---|---|---|
| Heavy-Duty Sliding Shed Doors | 120mm – 190mm (Multi-Track) | Patio, Pool Houses, Large Equipment Sheds | 1.6 – 2.2 W/m²K | 35 – 42 dB |
| Bi-Fold Panoramic Shed Doors | 75mm – 90mm System | Kitchen Servery, Garden Rooms, Workbenches | 1.4 – 1.8 W/m²K | 38 – 45 dB |
| Minimalist Swing Shed Entry Doors | 50mm – 65mm Frame | Interior Workroom, Side Shed Entry, Bedroom | 1.8 – 2.5 W/m²K | 32 – 38 dB |
| Central Axis Pivot Doors | 100mm Heavy Axis Frame | Luxury Villa Outbuilding, Grand Entryway | 2.0 – 2.6 W/m²K | 30 – 36 dB |
Why Partner With BrioWindow
Advanced Manufacturing Capabilities in Foshan, China
Headquartered in Nanhai District, Foshan City — the world's premier aluminium extrusion and hardware manufacturing hub — BrioWindow Technology Co., Ltd. delivers single-source manufacturing accountability.
50,000+ m² Integrated Factory
State-of-the-art CNC 5-axis profile machining, automatic corner-crimping machines, dual-component silicone sealing lines, and automated glass tempering plants.
Complete OEM/ODM Customization
In-house CAD/BIM drafting team supporting custom extrusion die creation, tailored RAL powder coating colors, anodizing finishes, and custom hardware integration.
30-Year Warranty Assurance
Every shipment undergoes rigorous factory testing under national and international standards. Backed by a comprehensive 30-year warranty on structural profile integrity.
Our End-to-End B2B OEM Procurement Workflow
1
Architectural Drawings
Share window/door schedules, CAD plans, or target U-values.
2
Engineering Optimization
Profile selection, glass build-up recommendation, and structural checks.
3
Shop Drawing Approval
100% precise 1:1 cross-section CAD approval prior to metal cutting.
4
CNC Fab & Inspection
Machining, assembling, corner testing, and air/water leak detection.
5
Export Crating & Logistics
Steel-framed wooden crate packing for sea freight to North America, AU, EU.
Technical Clarifications
Frequently Asked Questions for OEM/ODM Buyers
Comprehensive engineering and commercial responses for developers, wholesalers, and general contractors sourcing aluminium shed doors and window systems.
What specific types of aluminium shed doors and architectural window systems can BrioWindow manufacture?
We provide full-spectrum custom manufacturing covering heavy-duty aluminium sliding doors, thermal break bi-fold doors, interior aluminium honeycomb swing doors, central axis pivot doors, soundproof tilt-and-turn casement windows, horizontal sliding windows, motorized smart glass systems, PVC doors/windows, wooden doors, fire-rated door assemblies, sunrooms, and commercial curtain wall systems.
Which international building codes and product certifications do your products comply with?
Our products are engineered specifically for export markets. We hold compliance documentation for Australian Standard AS2047 / AS1288 (windows and glass in buildings), North American NFRC and AAMA testing standards for U-factor and Solar Heat Gain Coefficient (SHGC), CE marking for European Union import requirements, and ISO9001 factory operational certifications.
What is your Minimum Order Quantity (MOQ) and production lead time for custom OEM orders?
For custom profile colors or bespoke architectural projects, our standard MOQ starts at 50 square meters or a minimum order value equivalent. Typical fabrication lead time is 20 to 28 days following final shop drawing sign-off and deposit confirmation. Accelerated production schedules can be coordinated for urgent project timelines.
How do thermal break profiles compare to standard solid aluminium extruded profiles for outdoor sheds?
Standard solid aluminium profiles conduct outdoor heat or extreme cold directly into the building envelope. Thermal break profiles feature a low-conductivity structural polyamide strip (PA66GF25) separating the exterior and interior aluminium extrusions. This stops thermal transfer, drastically lowers heating/cooling HVAC loads, and eliminates interior frame sweating or condensation in conditioned shed environments.
Can you manufacture aluminium doors to match custom wind load or hurricane impact requirements?
Yes. We engineer heavy-duty structural profiles with up to 3.0mm wall thickness, multi-point lock mechanisms (German SIEGENIA or HOPO hardware), structural silicone structural glazing sealant (Dow Corning), and SGP laminated impact glass designed to withstand hurricane wind forces exceeding 4500 Pa (equivalent to Category 5 wind loads).
What surface finishes are available for high-corrosion or coastal environments?
We offer specialized surface treatments including Fluorocarbon PVDF coating (3-coat system tested to 3000+ hours salt spray resistance), Anodizing (Class 25, 25 micron film thickness), Electro-coating (E-coating), and Qualicoat-certified architectural powder coatings in any standard RAL color or 3D textured wood grain finish.
What documentation should our procurement team prepare to receive a rapid OEM/ODM quote?
To provide an exact factory quotation, please send: (1) Project building location and target wind/thermal codes, (2) Opening dimensions or architectural CAD/BIM drawings, (3) Preferred opening configuration (sliding, bi-fold, casement), (4) Glass specifications (double Low-E, tinted, laminated), (5) Preferred frame finish color, and (6) Total required quantity and destination sea port.
What post-purchase technical support and warranty policies do you provide for overseas clients?
We supply a written 30-year structural frame warranty and a 10-year warranty on insulated glass units and hardware systems. We provide step-by-step video installation guides, 1:1 shop assembly schematics, and live technical consultation with our engineering team for field installers.
Ready to Optimize Your Door & Window Procurement?
Partner with Foshan's premier OEM/ODM manufacturer. Contact our engineering desk today to obtain complete product catalogs, laboratory test certificates, custom CAD shop drawings, and direct factory pricing.
