Precision OEM Aluminum Window Catalog
Explore our export-grade fenestration profiles, engineered to strict AAMA, AS2047, and EN 14351-1 testing compliance.
Exterior Aluminum Sliding Window Double Glazing Soundproof Good Air Tightness for Home Renovation and Remodeling Works
Elegant And Adaptable Design Italy Brand Excellent Durability Aluminum Frame House Windows

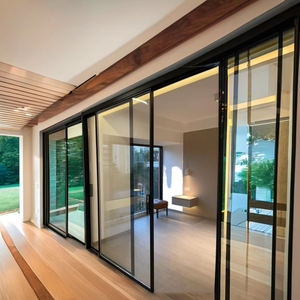

Custom Aluminum Windows and Doors Energy Saving Low E Glass Casement Window Double Glazed Tilt and Turn House Window
Modern Design Villa Triple Panel Double Glazed Tempered Glass Aluminum Casement Window
Aluminium Sliding Window With Safety Tempered Glass and Rounded Corner for Kindergarten and School Building Projects
Space-Saving Aluminum Folding Glass Windows for Versatile Applications
Aluminum Glass Round Window Glass Circle Window Swing Round Window
Aluminium Windows and Doors Industry Hardware Tilt Turn Circle Glazed System Solutions
Engineering Excellence in Custom OEM Fenestration
BrioWindow Technology Co., Ltd. delivers high-precision OEM/ODM aluminum window profiles and architectural envelope solutions from our advanced manufacturing infrastructure in Foshan, China.
Architectural OEM Extrusion Specifications & Testing Criteria
When selecting a custom OEM aluminum around windows manufacturer, commercial buyers and architectural specs requires strict mechanical, thermal, and acoustic performance parameters. Our manufacturing lines implement 6063-T5 and high-tensile 6061-T6 primary aluminum alloys, processed through precision extrusion dies to achieve wall thicknesses ranging from 1.4mm for residential applications up to 3.0mm+ for heavy structural curtain walls and commercial storefront openings.
Information Gain Metric: Standard residential profile systems often fail under extreme wind deflection loads exceeding 2.5 kPa. BrioWindow’s custom structural profiles incorporate multi-chamber polyamideresin thermal breaks (PA66 with 25% glass fiber reinforcement), ensuring dynamic wind pressure resilience up to 5.0 kPa while reducing U-factors down to 0.18 BTU/h·ft²·°F (Uw ≤ 1.1 W/m²K).
| Performance Indicator | Standard OEM Configuration | High-Performance Architectural Spec | Testing Protocol Compliance |
|---|---|---|---|
| Alloy Matrix & Temper | 6063-T5 Primary Aluminum | 6061-T6 / Structural 6063-T6 | ASTM B221 / GB/T 5237 |
| Thermal Insulation (Uw) | 2.2 – 1.8 W/m²K (Double Glazed) | 1.1 – 0.8 W/m²K (Triple Low-E + Argon) | NFRC 100/200 / EN ISO 10077 |
| Acoustic Rating (STC/OITC) | STC 32 – 36 dB | STC 42 – 48 dB (PVB Laminated) | ASTM E90 / ISO 10140 |
| Wind Pressure Resistance | Design Pressure (DP) 45 PST | Design Pressure (DP) 80-100 PST | AAMA/WDMA/CSA 101 / AS2047 |
| Surface Treatment Options | Qualicoat Powder Coating (60–80 μm) | Fluorocarbon PVDF (3-Coat) / Anodized 25 μm | AAMA 2604 / AAMA 2605 |
In-Depth OEM Window Systems & Engineering Profiles
Comprehensive design flexibility for architectural firms, custom home builders, and overseas trade distributors.
Thermal Break Casement & Tilt-Turn Systems
Tilt and turn windows offer dual-action operation: tilting inwards from the top for secure draft-free ventilation, or swinging inward 90 degrees for effortless cleaning. Our OEM configurations feature European multi-point lock gearing (G-U, Siegenia, or Hoppe) and triple EPDM weatherstripping to achieve class-leading air tightness.
Get CatalogUltra-Slim Sightline Sliding Doors & Windows
Maximizing natural light, our slim-interlock sliding window systems feature vertical sightlines as narrow as 20mm. Heavy-duty stainless steel roller assemblies support single sash weights up to 400kg with whisper-quiet, frictionless glide dynamics ideal for luxury villa master suites and modern commercial balconies.
Get CatalogGeometrical & Radius Custom Windows
Architectural projects frequently demand unique geometric shapes including true round windows, gothic arches, and custom radius fixed glazing. BrioWindow utilizes precision stretch-bending extrusion technologies that preserve structural wall integrity and powder-coat finishes without profile deformation or surface rippling.
Get CatalogFuture B2B Procurement Trends in Global Aluminum Fenestration (2025–2030)
The global architectural window market is experiencing a structural paradigm shift driven by stringent decarbonization targets, updated international energy codes, and digital procurement workflows. B2B buyers, real estate developers, and fenestration importers must adapt their OEM procurement strategies to remain competitive.
1. Whole-Lifecycle Carbon Accounting & Recycled Aluminum
Regulatory frameworks such as the European Union's Carbon Border Adjustment Mechanism (CBAM) and North American LEED v4.1 standards are making carbon footprint transparency mandatory. Future OEM window procurement prioritizes manufacturers utilizing hydro-powered low-carbon aluminum ingots and minimum 30% post-consumer recycled scrap metal to cut embodied carbon by up to 65%.
2. Digital Twin Integration & BIM Standardization
Global architectural firms require full Building Information Modeling (BIM) Level 2 integration. OEM manufacturers must provide parameter-rich Revit (.RFA) and IFC digital assets for custom window extrusions, allowing real-time thermal modeling, acoustic simulation, and structural loading calculations directly inside architectural CAD environments.
3. DFM (Design for Manufacturability) Co-Engineering
Leading importers are moving away from off-the-shelf window catalogs toward co-engineered OEM solutions. By engaging factory design engineers early, buyers optimize die tooling layouts, reduce aluminum scrap rates by up to 18%, and ensure fast-track fabrication times for large commercial envelope tenders.
Technological Innovations Shaping Modern Aluminum Window Manufacturing
Continuous breakthroughs in material science, automated machining, and intelligent hardware are redefining the limits of aluminum window performance and aesthetic versatility.
Vacuum Insulating Glass (VIG) Integration
By replacing conventional argon-filled air gaps with a 0.2mm vacuum layer, vacuum insulating glass achieves thermal resistance comparable to solid brick walls (U-values below 0.6 W/m²K) while reducing overall window weight and sash depth by 40%.
Smart Motorization & IoT Actuators
Concealed motorized chain actuators integrated directly into the window frame enable automated sash operation synced with building management systems (BMS), weather sensors, or smart home voice control networks for dynamic climate control.
Micro-Vented Sound Mitigation
Acoustically engineered frame profiles with integrated sound-baffle micro-ventilation allow fresh air circulation while attenuating external traffic noise by up to 35 dB even when the ventilation flap is open.
Super-Durable PVDF Coatings
Advanced 3-coat fluoropolymer (PVDF) electrostatic surface finishes provide superior salt spray corrosion resistance (5,000+ hours under ASTM B117 standards), ensuring zero color fading or chalking in extreme coastal and tropical UV environments.
Why Partner with BrioWindow Technology Co., Ltd.
Your Trusted Foshan Aluminum Fenestration OEM/ODM Manufacturing Partner
Foshan Extrusion Ecosystem
Located in Nanhai District, Foshan—China's global capital for aluminum profile manufacturing—we leverage direct access to premier raw aluminum billets, high-speed extruders, and world-class hardware supply chains, delivering uncompromised quality at factory-direct cost structures.
30-Year Structural Warranty
Every batch of custom OEM aluminum window systems undergoes rigorous QC testing, including air infiltration, water penetration under static pressure, structural load deflections, and corner crimp strength checks backed by our industry-leading 30-year structural warranty.
Global Export Footprint
With over 10 years of international trade expertise, our products are actively exported to more than 60 countries across North America (USA, Canada), Australia, Europe, and the Middle East, with full compliance for regional building codes and custom wooden crate export packaging.
Step-by-Step OEM/ODM Manufacturing & Procurement Workflow
We ensure complete transparency and precision control from initial CAD design submission to jobsite delivery.
Drawing & Schedule Review
Send architectural window schedules, CAD elevation drawings, or sample profiles. Our engineering team reviews wind load requirements, thermal targets, and hardware specs.
Extrusion Die & Shop Drawings
Custom extrusion die design (if required) and detailed 3D shop drawings are generated for written approval prior to cutting any raw aluminum stock.
CNC Machining & Glazing
Profiles undergo automated 5-axis CNC milling, thermal break insertion, corner crimping, and automated insulating glass unit (IGU) installation under controlled humidity.
Export Crate Loading & Support
Finished windows are wrapped in protective film, corner-guarded, and secured into steel-reinforced fumigated plywood crates labeled by floor and window tag for easy site installation.
Custom OEM Aluminum Windows: Frequently Asked Procurement Questions
Direct technical and operational answers to assist trade buyers, contractors, and fenestration distributors.
For standard aluminum window profile series in inventory colors (Matt Black, Architectural Bronze, White), our MOQ starts at 50 square meters. For fully customized extrusion dies or bespoke PVDF color matches, the MOQ is typically 300 square meters or 1.5 metric tons of aluminum extrusions.
Our export window series are engineered specifically for regional compliance. For North America, we utilize NFRC-rated thermal breaks and AAMA certified powder coatings. For Australia, our window units are tested under AS2047 (Windows in Buildings) and AS1288 (Glass in Buildings), certified for water penetration resistance up to 450 Pa and high cyclonic wind loading.
We supply a full range of glass technologies, including double and triple glazed units (IGU), Low-E coatings (Single, Double, or Triple Silver Low-E), clear annealed, fully tempered safety glass, sound-insulating PVB laminated glass, smart switchable privacy glass, and warm-edge spacer bar technology with Argon gas fill.
New extrusion die fabrication typically requires 10 to 14 working days. Once the die is completed, initial sample extrusions are produced and physically checked via optical comparators for dimension accuracy before mass extrusion production commences.
We offer both premium domestic Chinese hardware systems (KSS, Kin Long, CMECH) and top-tier European hardware brands including Roto, Siegenia, Hoppe, and G-U, ensuring matching warranties and operation standards for global projects.
All finished window frames and glazed units are packed using multi-layer protection: protective film wrap, corner impact bumpers, corrugated paper wrap, and fully enclosed steel-strapped plywood crates with internal foam cushioning. Our ocean shipping loss rate remains below 0.05% across 10 years of global exports.
