Aluminum Patio Folding Doors Modern Bi-Fold Glass Door System For Outdoor Living
Ultra-slim frame profiles with heavy-duty bottom roller carriages. High thermal barrier efficiency designed for seamless indoor-outdoor transitioning.
Get Catalog
Export Portfolio
Featured OEM Aluminium Doors & Windows
Precision-engineered fenestration systems manufactured in Foshan, China. Certified for international building codes across the USA, Canada, Australia, and Europe.
Modern Wooden Entrance Door for Villas & Hotels Aluminum Wood Composite Front Lobby Door
Hybrid structural design combining weather-resistant exterior aluminium alloy shielding with interior solid wood luxury finishes for high-end entrances.
Get Catalog

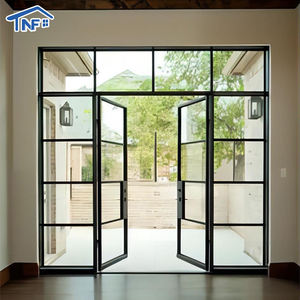

Aluminum Swing Door Double Tempered Glass Exterior Glass Arch Casement French Doors
Architectural radius arch casement profile with multi-point perimeter compression seals. Excellent acoustic dampening and structural wind pressure safety.
Get Catalog
Exterior Security Villa Main Door with Glass Panel Minimalist Concealed Design Windproof Arch
Concealed high-security heavy-duty hinges with reinforced structural sub-frames. Fully windproof and watertight sealing mechanics for coastal villas.
Get Catalog
Aluminum Hinged Patio Doors European Standard Double Panels Swing Style French Glass Doors
Euro-groove hardware standardization featuring dual-sealed EPDM gaskets, argon-filled double glazing, and precision thermal break polyamide bars.
Get Catalog
Heavy Duty Lift & Slide 156 Series Aluminum Sliding Glass Door Thermal Insulation for Villa
Heavy-duty lift mechanism accommodating oversized insulated glass units up to 400kg per sash. Exceptional U-factor performance and panoramic views.
Get Catalog
Wide Opening Large Size Heavy Duty Horizontal Aluminum Sliding Window with Magnetic Screen & Louver
Commercial grade horizontal sliding window system optimized for institutional and school builds. Integrated magnetic flyscreens and ventilation louvers.
Get Catalog
AS2047 Aluminum Casement Windows Compliant Top Hung Waterproof Double Glazed Window
Rigorously tested to Australian Standard AS2047. Top-hung awning and casement configurations featuring water pressure ratings exceeding 600Pa.
Get Catalog
Enterprise Engineering & OEM Authority
Architectural OEM Customization for Global Windows Procurement
Navigating structural wind pressure specifications, thermal envelope requirements, and custom profile extrusion for commercial facades and residential developments.
In contemporary architectural design, the window is no longer merely a transparent building envelope element; it operates as a sophisticated, engineered structural assembly responsible for overall energy efficiency, building acoustics, structural stability, and indoor environmental quality (IEQ). As a specialized Custom OEM Aluminium Open Window Supplier & Exporter based in Foshan, China—the world’s premier aluminium processing hub—BrioWindow Technology Co., Ltd. bridge architectural vision with mass-scale precision manufacturing.
Custom Original Equipment Manufacturer (OEM) fenestration manufacturing requires a multi-faceted approach. We maintain absolute control over the entire supply chain, starting from raw aluminum billet metallurgy to final hydrophobic surface coating. By specifying high-grade 6063-T5 and 6063-T6 architectural aluminium alloys, our open window profiles provide exceptional tensile strength (yielding up to 210 MPa) alongside high structural moment of inertia. This enables architects and general contractors to achieve minimal sightlines without compromising structural wind load resilience under extreme meteorological conditions.
Thermal Break Polyamide Technology
Our custom open window profiles utilize high-performance PA66-GF25 (25% fiberglass reinforced polyamide) thermal barriers. By isolating interior and exterior metal profiles, overall frame conductive heat transfer is minimized, achieving U-values as low as 1.1 W/m²·K in triple-glazed configurations.
Acoustic & Weatherproofing Integrity
Utilizing multi-chamber continuous EPDM (Ethylene Propylene Diene Monomer) gasket seals combined with equalizer pressure chambers, our open windows provide air infiltration performance below 0.1 L/s·m² and sound attenuation up to STC 45 dB.
Euro-Groove & Multi-Point Locking
Engineered around standard European hardware grooves (Euro-Groove Type 1 and Type 2), we seamlessly integrate heavy-duty concealed hinges, friction stays, and multi-point perimeter locks from world-renowned brands like Siegenia, Hoppe, and Monticelli.
OEM Value Addition: Custom Extrusion Dies & Bespoke Tooling
For large-scale commercial tenders and residential tower developments, standard window catalogs often fail to meet non-standard mullion depths or curtain wall interfaces. BrioWindow provides fast-track in-house CAD/BIM tooling design, delivering custom aluminum profile extrusion dies within 12 to 15 business days.
Engineering Metrics
Aluminium Open Window Structural & Thermal Performance Matrix
Comparative analysis of custom OEM opening typologies for procurement directors and structural engineers.
| Opening System Typology | Thermal U-Factor (W/m²·K) | Water Pressure Rating (Pa) | Acoustic Rating (STC) | Max Wind Load (Pa) | Recommended Application |
|---|---|---|---|---|---|
| Outswing Casement Window | 1.2 – 1.6 | 600 Pa (AS2047) | 38 – 42 dB | 4500 Pa | Coastal Villas, High-Wind Residential |
| Inswing Tilt & Turn Window | 1.1 – 1.4 | 700 Pa (EN 12208) | 40 – 45 dB | 5000 Pa | European Cold-Climate Towers, Luxury Condos |
| Top-Hung Awning Open Window | 1.4 – 1.8 | 450 Pa | 35 – 39 dB | 3500 Pa | High-Rise Commercial Facades, School Facilities |
| Heavy-Duty Bi-Fold System | 1.5 – 2.0 | 350 Pa | 32 – 36 dB | 3000 Pa | Indoor-Outdoor Resorts, Patio Transition |
| Heavy Duty Lift & Slide Open Window/Door | 1.3 – 1.7 | 500 Pa | 36 – 40 dB | 4000 Pa | Luxury Villa Patios, Penthouse Openings |
| Central Axis Pivot Entrance Window/Door | 1.6 – 2.2 | 300 Pa | 30 – 34 dB | 2800 Pa | Architectural Feature Wall, Hotel Lobbies |
Strategic Outlook
Future Sourcing & Procurement Trends in Aluminium Glazing
Analysing shifts in carbon regulations, building automation, and supply chain strategies for international buyers.
The global architectural fenestration sector is experiencing a massive paradigm shift driven by stringent decarbonization targets, updated energy performance certificates (EPCs), and changing economic variables. Commercial procurement managers, property developers, and volume importers must align their sourcing strategies with four critical market trends over the next decade:
1. Decarbonization & Embodied Carbon Accountability
With environmental performance standards such as LEED v4.1, BREEAM, and the EU Energy Performance of Buildings Directive (EPBD) tightening globally, the embodied carbon content of aluminum windows is scrutinized like never before. Future procurement demands primary aluminum produced via renewable energy sources (hydropower smelting) alongside post-consumer recycled scrap integration. BrioWindow’s OEM processes utilize low-carbon aluminum billets alongside non-toxic, VOC-free PVDF (Fluorocarbon) and powder coatings certified by Qualicoat guidelines, lowering the life-cycle carbon footprint of every architectural unit exported.
2. Smart Building Automation & Motorized Open Window Integration
The convergence of Building Management Systems (BMS) with fenestration technology has shifted demand toward automated open windows. Smart motorized actuators—concealed entirely within the frame profile sash—allow windows to open automatically based on indoor air quality (CO2 levels), rain sensors, or night-purge cooling protocols. OEM suppliers must manufacture profiles pre-milled for low-voltage wiring harnesses, magnetic reed contacts, and micro-actuators that interface natively with KNX or Zigbee smart home platforms.
3. Industrialized Prefabrication & Rapid Site Installation
Labor shortages across major construction markets in North America, Western Europe, and Australia are driving demand for pre-assembled, unitized, and pre-glazed window modules. Overseas buyers no longer want knock-down (KD) kits that require extensive site labor. Sourcing trends favor fully assembled window systems shipped with factory-installed sub-frames, integrated flashing fins, and factory-tested double/triple glass units (IGUs) that bolt directly into rough structural openings, cutting job site installation times by up to 60%.
4. Climate Resilience & Extreme Weather Compliance
Climate volatility has increased demand for windborne debris resistance (impact-rated fenestration) and high water-head pressure seals. Coastal regions in Florida, Texas, Northern Australia, and South-East Asia require window systems that survive cyclonic wind pressures exceeding 5000 Pa and impact testing (large missile impact ASTM E1996 / AS1170.2). OEM manufacturers must offer laminated glass combinations (SentryGlas / PVB interlayers) bonded to structural silicone glazing (SSG) pocket frames.
Manufacturing Control
Step-by-Step OEM Manufacturing & Quality Assurance
From raw aluminium billet to international containerized shipping—how BrioWindow ensures zero-defect export delivery.
01
CAD & Shop Drawing Validation
Detailed 2D/3D BIM structural calculations, wind load modeling, and opening schedule sign-offs prior to extrusion.
02
Precision Extrusion & Aging
6063 aluminum alloy extrusion subjected to T5/T6 artificial heat aging to achieve maximum hardness (Webster Hardness ≥12).
03
Surface Finish Treatment
Automated Qualicoat powder coating, anodizing (up to 25 microns), or PVDF spraying for anti-corrosion marine environment protection.
04
CNC Mitering & Corner Crimping
45-degree precision dual-head CNC saw cutting integrated with pneumatic corner key crimping and two-component epoxy injection.
05
Testing & Crate Loading
Full air/water mock-up chamber testing, followed by protective film application and fumigated plywood crate packing.
Procurement Guidance
Frequently Asked Questions (FAQ) for OEM Buyers
Detailed technical insights answering common questions from international buyers, importers, and contractors.
What makes Foshan, China the premier location for custom OEM aluminium window manufacturing?
Foshan is recognized globally as the capital of aluminum profile fabrication and fenestration technology. Operating within the Nanhai District industrial cluster allows BrioWindow to leverage complete supply chain integration—from raw ingot refining and thermal barrier strip manufacturing to specialized European hardware supply houses and glass processing plants. This localized ecosystem dramatically reduces OEM production lead times, lowers material logistics overhead, and grants access to cutting-edge CNC extrusion tooling unavailable elsewhere.
How does BrioWindow ensure compliance with Australian Standard AS2047 and North American NFRC/AAMA codes?
Every product series destined for export undergoes rigorous physical mock-up testing in accredited NATA or AAMA-approved testing laboratories. Our AS2047 compliant windows pass strict deflection testing (AS4420.2), operating force tests (AS4420.3), air infiltration (AS4420.4), water penetration resistance (AS4420.5 at pressure heights up to 600Pa), and ultimate strength deflection (AS4420.6). Detailed test reports and engineering calculation letters are supplied alongside commercial invoices for customs clearance and municipal building approvals.
Can BrioWindow manufacture custom architectural windows directly from client-supplied CAD / Revit drawings?
Yes. Our internal engineering department consists of Senior Structural Engineers and Fenestration Drafters fluent in AutoCAD, SolidWorks, and Revit. We accept architectural window schedules, DWG/DXF files, and BIM models. We analyze structural wind loads based on project location, propose optimized mullion profiles, produce shop drawings for client approval, and generate precise CNC machine code directly from validated CAD data.
What glass configurations are available for custom thermal and acoustic requirements?
We provide a wide range of Insulated Glass Units (IGUs). Options include double glazing (e.g., 6mm Low-E + 12Ar + 6mm Clear) and triple glazing (e.g., 5mm Low-E + 9Ar + 5mm Clear + 9Ar + 5mm Low-E). We also supply acoustic laminated glass with PVB or SentryGlas (SGP) interlayers for high-noise urban environments or hurricane zones. Spacers can be upgraded from standard mill-finish aluminum to Technoform warm-edge composite spacers to eliminate perimeter cold bridging.
What surface finishes and powder coating warranties are available for coastal or high-salinity projects?
For harsh marine environments within 1 km of ocean shorelines, standard anodizing or architectural powder coating can suffer filiform corrosion. We offer high-performance PVDF (Polyvinylidene Fluoride) 3-coat fluorocarbon liquid spraying (compliant with AAMA 2605 specifications) and Interpon / AkzoNobel coastal grade powders with up to 25-year manufacturer warranties. These finishes resist salt fog degradation, intense UV oxidation, and chemical pollutants.
What are the standard OEM production lead times and sea-freight packaging methods?
Standard production lead time for customized orders is 25 to 35 calendar days following shop drawing sign-off and deposit receipt. For shipping, windows are wrapped in 5-layer protective polyethylene film, fitted with corner guard protectors, placed on custom-built steel/fumigated plywood pallets, and packed with desiccant bags inside sea containers to eliminate condensation damage during oceanic transit.
How does BrioWindow support overseas partners regarding installation guidance and 30-year QA guarantees?
We provide a 30-Year After-Sales Quality Assurance policy covering structural aluminum frame integrity. Every shipped container includes step-by-step installation manuals, exploded 3D assembly diagrams, sub-frame anchoring details, and perimeter flashing guidelines. Furthermore, our technical support team is available via video conference to assist job-site superintendents and glazing contractors during initial installation phases.
Partner with China's Premier Aluminium Open Window OEM Supplier
Whether you require custom die extrusions for a commercial facade or certified AS2047 double-glazed casement windows for residential developments, BrioWindow delivers precision engineering, reliable delivery schedules, and factory-direct value.
