Featured Commercial & Residential Aluminum Systems
Precision-engineered replacement windows and door assemblies produced under ISO9001 and strict international building standards. Designed for high thermal efficiency, acoustic insulation, and hurricane-rated structural integrity.
EEHE Oversized Aluminum Sliding Door NFRC Certified Double Glazed Heavy Duty Patio Sliding Doors

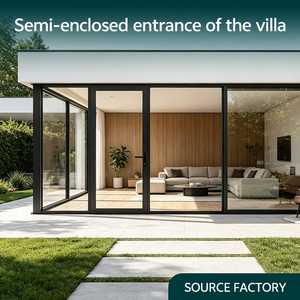

Wholesale Manufacturer NFRC Certified Double Glazing Aluminum French Double Entry Door Low-E Glass
Modern Space Saving Bathroom Pocket Door Tempered Glass PD Doors
Courtyard Entry Sliding Doors Thermal Insulation Double Tempered Glass Patio Doors
Dark Brown Aluminum Electric Garage Door with Four Warm Glazed Panels & Grid Design
Aluminum Profile Sliding Door Slim Extruded Frameless Patio Vertical Metal Bar Alloy Custom Frame
Custom Made Aluminum Alloy Impact-Resistant Wear Resistant Access Doors for Commercial Projects
700*300mm Radius Corner Flat Window with Powder Coated Aluminum Frame for Specialized Units
Architectural Engineering Guide: Aluminum Replacement Windows Sourcing in 2025–2030
In the global commercial and high-end residential building envelope market, aluminum replacement windows have evolved from simple aesthetic upgrades into multi-functional structural components. Sourcing high-performance fenestration systems directly from premier Chinese manufacturing hubs—specifically Foshan, Guangdong—offers B2B procurement managers, general contractors, and real estate developers unparalleled economies of scale without sacrificing thermal efficiency or compliance with stringent Western building codes.
1. Profile Extrusion & Metallurgical Integrity
The core structural lifespan of any architectural window rests on the alloy chemistry of its frame. China's top-tier manufacturers rely strictly on primary billet aluminum rather than re-melted scrap. The standard baseline for commercial-grade replacement profiles is 6063-T5 alloy, known for its superior tensile strength, surface finish homogeneity, and anodizing capabilities. For coastal or high-wind load zones (such as hurricane-prone regions in Florida or Western Australia), custom wall thicknesses spanning 1.8mm to 3.0mm are implemented to guarantee compliance with ASTM E330 structural performance metrics.
2. Thermal Break Mechanics: Conduction Mitigation
Historically, aluminum was criticized for its high thermal conductivity ($k \approx 200 \text{ W/m}\cdot\text{K}$). Modern replacement windows overcome this through multi-chamber thermal breaks. By inserting structural polyamide struts (PA66 reinforced with 25% glass fiber) between the inner and outer extrusions, the thermal bridge is broken. This engineering design lowers overall system U-Factors down to $\le 0.22 \text{ BTU/h}\cdot\text{ft}^2\cdot^\circ\text{F}$, seamlessly meeting North American Energy Star V7.0 directives and Australian BASIX sustainability mandates.
AAMA 2605 Surface Finishes
Fluoropolymer (PVDF) 70% resin coatings designed to resist extreme UV radiation, chalking, and salt-spray corrosion for over 3,000 continuous test hours.
IGCC / SGCC Certified Glass
Fully tempered, laminated, or double-glazed Low-E units featuring warm-edge stainless steel or swiggle spacers for maximum Solar Heat Gain Coefficient (SHGC) control.
Multi-Point Locking Gearboxes
Heavy-duty German-engineered (CMECH / Hoppe) hardware integrating perimeter mushroom locks for anti-burglary protection and air tightness (Class 4 EN 12207).
Technical Specification Comparison: Standard Commercial vs. High-Performance Architectural Replacement Windows
Use this data matrix when structuring procurement specifications for international commercial or residential development proposals:
| Performance Metric | Standard Aluminum Window | Thermal Break Replacement Window | BrioWindow Enterprise System |
|---|---|---|---|
| Frame Thermal Conductivity (U-Factor) | 0.80 - 1.20 BTU/h·ft²·°F | 0.28 - 0.35 BTU/h·ft²·°F | 0.18 - 0.24 BTU/h·ft²·°F (NFRC Certified) |
| Solar Heat Gain Coefficient (SHGC) | 0.60 - 0.75 | 0.25 - 0.40 | 0.16 - 0.28 (Tunable Low-E Stack) |
| Acoustic Insulation (STC Rating) | 22 - 26 dB | 32 - 36 dB | 38 - 45 dB (Triple Laminate Option) |
| Wind Pressure Resistance (ASTM E330) | 1200 Pa (25 psf) | 3000 Pa (62.5 psf) | Up to 5000 Pa (104 psf Hurricane Rating) |
| Water Penetration Resistance (ASTM E331) | 150 Pa (3.13 psf) | 450 Pa (9.39 psf) | 700 Pa (14.6 psf High Sill Sub-framing) |
| Surface Coating Longevity | Standard Powder (3-5 Yrs) | AAMA 2604 (10 Yrs) | AAMA 2605 PVDF (30-Year Assurance) |
Future Procurement Trends: Aluminum Replacement Windows
As global environmental standards tighten and building automation accelerates, international buyers must align their procurement strategies with emerging manufacturing paradigm shifts in China.
1. Minimalist Ultra-Slim Sightlines
Architectural trends prioritize maximum glass surface area. Demand is shifting rapidly toward narrow interlocks (18mm to 25mm visible profiles) and structural silicone bonding, combining sleek modern aesthetics with robust structural deflection ratings.
2. Smart Automation & Smart-Home Integration
Next-generation replacement windows incorporate motorized actuators, automated rain sensors, concealed electro-chromic tinting glass, and smart lock interfaces compatible with centralized Building Management Systems (BMS).
3. Low Embodied Carbon & Circularity
Leading suppliers are adopting hydro-powered recycled aluminum extrusions with certified Environmental Product Declarations (EPD). Sourcing low-carbon aluminum enables overseas developers to secure LEED v4.1 points.
Why Partner with BrioWindow Technology Co., Ltd.
Headquartered in Nanhai District, Foshan City—China's global capital for aluminum extrusion and window system engineering—BrioWindow Technology Co., Ltd. serves as a trusted OEM/ODM manufacturer for importers, general contractors, developers, and trade distributors across the United States, Canada, Australia, and over 60 countries worldwide.
Comprehensive Export Experience
Over 10 years of specialized international export experience. Our engineers understand regional building code nuances, including NFRC thermal metrics, AS2047 Australian compliance, and CE European marks.
Full Customization & CAD Design
We convert architectural schedule drawings into detailed production shop drawings. From custom frame colors (RAL spectrum) to specialized hardware finishes and glass makeup, every unit is built to exact opening tolerances.
30-Year Quality Assurance
Backed by rigorous quality control protocols from aluminum extrusion sourcing to final packaging. We provide a 30-year structural and finish quality guarantee, accompanied by dedicated technical guidance for overseas installation teams.
Frequently Asked Questions for Sourcing Managers
Essential technical answers regarding wholesale window orders, structural engineering compliance, production schedules, and international freight logistics.
Ready to Elevate Your Window Procurement Pipeline?
Contact our technical sales engineers in Foshan today. Share your architectural drawings, window schedules, or custom OEM requirements to receive an accurate, factory-direct quotation within 24 hours.
