Featured Aluminum Glass Doors & Windows Portfolio
Factory-direct fenestration products manufactured in Foshan, China. Designed for high thermal efficiency, hurricane impact safety, structural wind pressure tolerance, and seamless interior-exterior transitions.
SAYYAS F120 Fixed Modern Luxury Aluminum Clad Wood Window
High-end anthracite grey interior/exterior fixed window featuring solid wood cladding combined with structural aluminum profile for living rooms.
Modern Villa Triple Panel Double Glazed Aluminum Casement Window
Engineered for luxury villas, featuring heavy-duty multi-chambered aluminum profiles and soundproof tempered insulating glass unit (IGU).
Commercial Storefront Hurricane Swing Door (NFRC & FPA Certified)
Heavy-duty commercial glass swing entrance door certified for severe weather zones, wind pressure impact resistance, and high-traffic security.
Energy Efficient Stacker Aluminum Sliding Windows & Doors
Multi-panel stacker sliding system maximizing daylight integration and outdoor connectivity with low thermal conductivity extrusions.

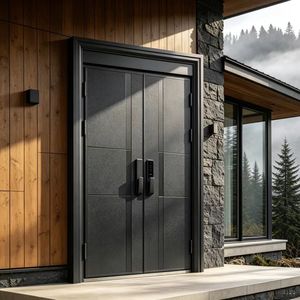

High-End Aluminum Armored Security Front Entry Door
Modern minimalist villa pivot & swing security door with thickened anti-bullet aluminum armor core, anti-pry lock mechanisms, and waterproofing.
Flat Single Swing Glass Door for Kitchen, Balcony & Arched Opening
Versatile aluminum casement-style single swing interior/exterior door with soundproofing double rubber seals and moisture protection.
Customized Exterior Glass Aluminum Profile Villa Partition Door
Commercial and residential exterior wall glazing system engineered with heavy-duty aluminum framing, continuous track hardware, and custom finishes.
Ship Handwheel Watertight Bulkhead Solid Aluminum Marine Door
Heavy-duty marine-grade aluminum swing access door featuring perimeter handwheel dogging gear for complete watertight pressure integrity.
Engineering Whitepaper: Structural Standards of Wholesale Aluminum Glass Swing Doors
In modern architectural fenestration, the specification of aluminum glass swing doors represents a critical intersection of structural engineering, thermal physics, safety compliance, and aesthetic elegance. As a premiere China manufacturer and exporter situated in Nanhai District, Foshan—the world’s foremost aluminum profile production center—BrioWindow Technology Co., Ltd. delivers custom-engineered swing door systems optimized for stringent international building codes including North American (AAMA/WDMA/CSA, NFRC, Florida Product Approval), Australian (AS2047, AS1288), and European (CE EN 14351-1) benchmarks.
1. Extrusion Metallurgy and Alloy Matrix Optimization
The foundational integrity of an architectural swing door hinges upon the mechanical properties of its aluminum profile. Standard commercial profiles frequently utilize low-grade recycled billet, compromising tensile yield strength and long-term corrosion resistance. BrioWindow utilizes strictly 100% primary 6063-T5 and 6063-T6 architectural grade aluminum alloys, extruded to profile wall thicknesses ranging from 1.4mm for light commercial openings up to 3.0mm+ for heavy-duty hurricane impact storefront entry doors.
- Ultimate Tensile Strength: ≥ 205 MPa (T6 temper) ensuring zero frame distortion under extreme wind loads.
- Yield Strength: ≥ 170 MPa, resisting permanent deflection during repeated high-frequency cycling in commercial entryways.
- Anodizing & PVDF Finishes: Surface treatment options include Fluorocarbon (PVDF) 3-coat spraying meeting AAMA 2605 requirements, providing superior resistance against UV degradation, coastal salt spray corrosion, and chemical weathering.
2. Advanced Thermal Break Technology: Polyamide Iso-Strut Integration
Uninsulated aluminum exhibits high thermal conductivity (k ≈ 200 W/m·K), which creates severe thermal bridges in air-conditioned or heated interior spaces. To eliminate condensation risks and dramatically improve overall building energy performance, BrioWindow integrates multi-chambered PA66-GF25 (Polyamide 66 reinforced with 25% glass fiber) thermal break strips.
This structural isolation reduces the system Thermal Transmittance (U-Value) from an uninsulated 5.8 W/m²K down to ultra-low thermal ratings of 1.4 to 1.8 W/m²K (U-factor 0.25 to 0.31 BTU/h·ft²·°F) when paired with double or triple insulated glass units (IGUs) incorporating argon gas fills and Low-E soft coatings.
Comprehensive Specification Comparison Matrix
| Performance Indicator | Standard Swing Door | Thermal Break Swing Door | Hurricane Impact Swing Door | Marine Bulkhead Door |
|---|---|---|---|---|
| Profile Wall Thickness | 1.4mm - 1.8mm | 2.0mm - 2.5mm | 2.5mm - 3.5mm Heavy Duty | 4.0mm - 8.0mm Solid Aluminum |
| Glass Configuration | 5mm+12A+5mm Tempered | 6mm Low-E+16Ar+6mm IGU | 6mm Temp + 1.52SGP + 6mm Laminated | Solid Aluminum / Reinforced Glazing |
| Wind Pressure Resistance | Class 3 (2.5 kPa) | Class 5 (3.5 kPa) | DP80 / TAS 201/202/203 (5.0+ kPa) | Hydrostatic Pressure 0.2 MPa |
| Acoustic Insulation (STC) | 30 - 32 dB | 38 - 42 dB | 40 - 45 dB | 42+ dB Structural Seal |
| Hardware Mechanism | Single Point / Mortise Lock | German 3-Point Multi-Lock | High-Torque Panic / 5-Point Lock | Perimeter Handwheel Dogging |
| Water Tightness Rating | 300 Pa (Class 4A) | 600 Pa (Class 9A) | 1050 Pa (High Velocity Zone) | 100% Hermetic Hydro-Lock |
Enterprise Advantage: Why Global Importers Trust BrioWindow
Combining Foshan’s complete aluminum supply chain with over a decade of direct export experience to the USA, Canada, Australia, and over 60 countries globally.
Strict Quality Control System
Every aluminum swing door unit undergoes multi-stage inspections, including raw extrusion billet purity verification, corner cleat crimping tension tests, EPDM weather-strip compression checks, and pre-shipment water tightness testing under simulated storm pressure.
Bespoke CAD & BIM Engineering Support
Our in-house technical department collaborates directly with architectural firms and general contractors. We convert architectural elevation drawings into detailed shop drawings, structural wind load calculations, and precise opening schedules prior to production.
Turnkey Export Packaging & Compliance
Units are fully protected with 360-degree protective film, corner edge guards, shock-absorbing foam, and packed into fumigated steel-reinforced wooden crates. Designed to withstand ocean container transit and rapid jobsite unpacking.
Future Procurement Trends in the Global Aluminum Glass Swing Door Market
As international energy efficiency standards become more stringent and architectural preferences lean toward modern minimalist aesthetics, the global demand for high-performance wholesale aluminum glass swing doors is undergoing significant shifts. Importers, distributors, and real estate developers must align their sourcing strategies with five core industry macro-trends:
Trend 1: Minimalist Ultra-Narrow Sightlines & Concealed Hardware
Architectural trends favor maximum glass surface areas with ultra-slim aluminum profiles (frame face widths reduced from traditional 80mm down to 25mm–38mm). Modern swing doors increasingly integrate heavy-duty concealed pivot hinges and continuous 3D adjustable 180-degree concealed hinges capable of supporting door leaves exceeding 350kg while maintaining a clean, flush aesthetic surface.
Trend 2: Decarbonization & Circular Economy Material Sourcing
Green building accreditation frameworks such as LEED v4.1 and BREEAM now incentivize low-carbon aluminum extrusions. Leading China manufacturers like BrioWindow are adopting hydro-powered aluminum smelting billets and certified recycled content extrusions to decrease embodied carbon metrics without compromising mechanical tensile ratings.
Trend 3: Smart Access & Automated Motorized Integration
The convergence of commercial access control with luxury residential swing doors has accelerated the adoption of embedded smart locks. Modern wholesale specifications frequently require biometric fingerprint scanners, facial recognition access, encrypted RFID keypads, and motorized concealed swing operators compatible with global smart home protocols (KNX, Zigbee, Matter).
Trend 4: Hurricane Impact & Extreme Weather Resilience
Coastal development growth in Florida, the Caribbean, coastal Australia, and East Asia has surged demand for hurricane-rated fenestration. Future swing doors must feature SentryGlas® (SGP) structural interlayers, heavy-duty deadbolts, and reinforced mullion sub-frames capable of passing cyclic wind pressure testing up to +80/-80 PSF (Pounds per Square Foot).
Frequently Asked Questions (FAQ) for B2B Importers
Technical, logistical, and commercial inquiries answered by BrioWindow’s senior fenestration export engineering team.
