Factory Direct Portfolio
High-Performance Aluminium Sliding & Fenestration Systems
Engineered to international structural standards (CE, NFRC, AS2047) with precision roller hardware and high-durability anodized or powder-coated finishes.
Space-Saving Interior Sliding Door Aluminum Alloy Glass Partition Door Narrow Frame Sliding Door for Villa
Inquire Now

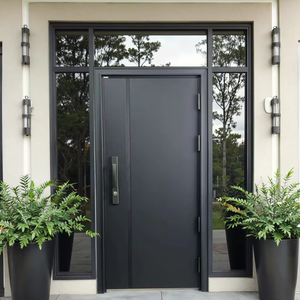

Exterior Gate Door External Door Security Entry Front Door for House External Entrance Outdoor Security
Inquire Now

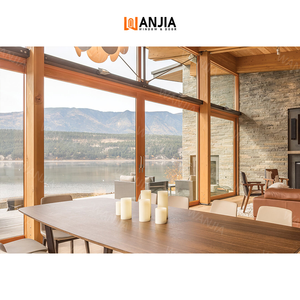

Industry Leader Supplier Patio Balcony Sliding Doors Double Glazing Aluminium Clad Wood Door Residential Exterior Glass Doors
Inquire Now

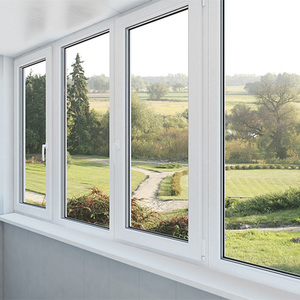

Hurricane Impact Casement House Windows Aluminum Alloy Casement Window Aluminum bar for Window and Door for House
Inquire Now

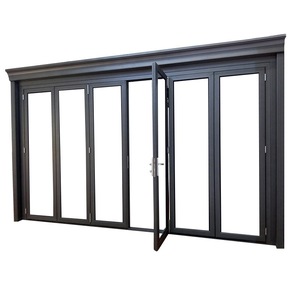

Heavy-Duty Aluminum Partition Sliding Door Double Low-E Tempered Glass Thermal Break Energy Efficient Interior Bedroom
Inquire Now

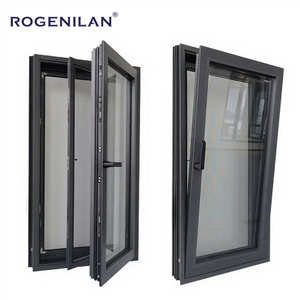

CE Certified Slim Narrow Frame Casement Window Hurricane Proof Sound Insulated Tilt Turn Aluminum Windows
Inquire Now

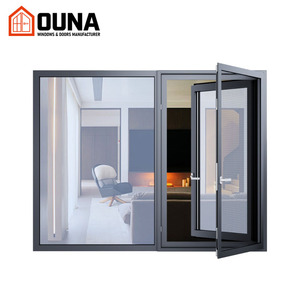

OUNA NFRC Soundproof Double Glazed Insulated Aluminium Glass Casement windows Design Impact Energy Efficiency Aluminum Window
Inquire Now10+
Years Manufacturing Excellence
60+
Global Export Destinations
30-Year
Structural Quality Assurance
100,000+
Kinetic Sliding Cycle Testing
Architectural Metallurgy & Profile Engineering in Modern Sliding Systems
When specifying structural aluminium sliding cupboard doors and spatial partition systems for residential, commercial, and hospitality projects, material science and kinetic mechanism design dictate long-term durability. In China's premier manufacturing ecosystem—centered in Foshan, Guangdong—producers utilize advanced 6063-T5 and 6063-T6 architectural aluminium alloys. These extrusions undergo artificial aging processes to achieve a Webster hardness rating above 12 HW, providing an exceptional strength-to-weight ratio crucial for large-span wardrobe panels, walk-in closets, and interior pocket partitions.
Unlike traditional wooden or cold-rolled steel cabinet doors, premium aluminium sliding profiles maintain absolute dimensional stability under fluctuating ambient humidity and thermal stress. The structural integrity of an aluminium cupboard panel relies heavily on profile wall thickness (typically ranging from 1.2mm to 2.0mm for heavy-duty interior applications) and internal web reinforcement geometry. This eliminates bowing, warping, and track misalignments over decades of intensive usage.
Technical Insight for B2B Buyers: Structural deflections in cupboard sliding panels exceeding 2400mm in height are mitigated by integrating internal tensioner rods (anti-warping steel bars) within extruded vertical stiles. This guarantees leaf planar accuracy within ±0.5mm tolerances across 3000mm ceiling-height installations.
Surface Metallurgy: Corrosion Resistance & Aesthetic Treatments
The lifespan and tactile appeal of aluminium sliding cupboard doors depend significantly on surface treatment technology. Top Chinese exporters adhere to rigorous international benchmarks such as QUALICOAT, QUALANOD, and AAMA standards. Key finishing techniques include:
Electrophoretic Anodizing
Creates an electrochemical oxide layer (15μm - 25μm) offering superior scratch resistance, anti-fingerprint properties, and a matte metallic luster ideal for modern minimalist interior architecture.
Fluorocarbon (PVDF) & Powder Coating
Utilizes electrostatic powder deposition (60μm - 80μm thickness) delivering UV resistance, zero VOC off-gassing, and custom RAL color matching for seamless interior design cohesion.
3D Thermal Sublimation Wood Grain
Transfers natural timber textures into the anodized profile surface, providing the organic warmth of real oak or walnut without humidity swelling, termite susceptibility, or maintenance overhead.
Kinetic System Engineering: Rollers, Track Systems & Soft-Closing Mechanics
Smooth operation and low acoustic feedback determine the quality of sliding wardrobe and cupboard door assemblies. Engineering excellence requires a harmonized balance between track profile extrusion, carriage roller bearings, and hydraulic dampening units.
Bottom-hung sliding configurations shift the structural load directly to the floor track, making them the preferred choice for heavy glass composite cupboard doors (up to 150kg per leaf). Top-hung (suspended) systems eliminate bottom floor tracks completely, creating seamless floor transitions in modern open-plan walk-in closets and spatial dividers. Precision-engineered rollers utilize high-density polyoxymethylene (POM) or nylon-coated outer rings wrapped around Japanese stainless-steel ball bearings. This configuration guarantees friction-free movement tested for over 100,000 continuous opening and closing cycles.
| System Component | Standard Commercial Spec | Architectural Heavy-Duty Spec | Performance Benefit |
|---|---|---|---|
| Alloy Grade | 6063-T5 Standard | 6063-T6 / 6061-T6 High-Strength | Increased yield strength & resistance to mechanical deflection |
| Profile Thickness | 1.0mm – 1.2mm | 1.5mm – 2.0mm Reinforced | Supports oversized double-glazed or heavy timber infills |
| Roller Hardware | Single POM Bearing | Dual Stainless Ball-Bearing + POM Coat | Silent glide (<25dB) & payload capacity up to 150kg/door |
| Soft-Closing Unit | Single-Direction Mechanical Spring | Bi-Directional Hydraulic Buffer Damper | Prevents door rebound & protects glass panels from impact shock |
| Infill Compatibility | Single Glass (4-6mm) / MDF | Tempered Low-E, PVB Laminated, Reeded Glass | Enhanced acoustic attenuation & safety compliance (EN12150) |
Future Procurement Trends in Aluminium Cupboard & Interior Sliding Systems
As global architectural preferences shift toward minimal sightlines, smart home integration, and sustainable building materials, international B2B buyers must adapt their sourcing strategies. China's top manufacturers are currently driving several key technological advancements:
1. Micro-Slim Profile Stacking (16mm Sightlines)
Demands for ultra-narrow frame profiles (16mm to 20mm visible face width) are soaring. Advanced extrusions maintain structural stiffness via deeper lateral profile depth (35mm-45mm) and concealed internal corner cleats.
2. Motorized & IoT-Enabled Smart Sliding
Integration of brushless DC motors and proximity sensor arrays into upper track housings allows touchless, voice-activated, or smartphone-controlled opening for luxury wardrobes and master dressing rooms.
3. Eco-Certified Low-Carbon Aluminum Billet Sourcing
Tier-1 suppliers are incorporating recycled aluminium billets (up to 75% post-consumer scrap) melted via hydro-electric energy, drastically reducing embodied carbon for LEED and BREEAM project compliance.
Why Source from BrioWindow Technology Co., Ltd. (Foshan, China)
Headquartered in Nanhai District, Foshan City—the premier aluminium manufacturing hub of China—BrioWindow brings over a decade of specialized export experience. We serve real estate developers, commercial contractors, and wholesale distributors across the United States, Canada, Australia, and over 60 countries worldwide.
- One-Stop Manufacturing Scope: Full product range including aluminium sliding cupboard doors, casement windows, pivot entrance systems, PVC doors, sunrooms, and structural curtain walls.
- Strict Quality Assurance: Products compliant with rigorous international testing standards (CE, NFRC, AS2047) backed by a 30-year structural after-sales quality guarantee.
- End-to-End OEM/ODM Support: Full CAD design verification, structural calculation review, and hardware customization prior to volume extrusion cutting.
- Export Packing Engineering: Custom wood-crating, protective corner guards, and vacuum plastic film wrap ensure 0% breakage during ocean freight container shipping.
Frequently Asked Questions (FAQ) for B2B Importers & Architects
What doors and windows does BrioWindow manufacture in Foshan? +
We manufacture a comprehensive fenestration portfolio including aluminium alloy folding doors, sliding cupboard/wardrobe doors, heavy-duty patio sliding doors, swing doors, casement and tilt-turn windows, PVC windows/doors, engineered wooden interior doors, fire-rated security doors, sunrooms, structural curtain walls, central axis pivot doors, and smart motorized window systems.
Which primary international markets does BrioWindow serve? +
Our primary export markets include North America (United States & Canada) and Australia/New Zealand. However, our fenestration systems are regularly shipped to over 60 countries across Europe, the Middle East, Southeast Asia, and South America, tailored to meet local building codes and wind-load metrics.
Can BrioWindow manufacture sliding cupboard doors to custom sizes and architectural shop drawings? +
Yes, 100% of our production is customized. Our in-house engineering team reviews project elevation drawings, opening schedules, and structural requirements. We provide detailed 2D/3D shop drawings confirming profile extrusions, glass specifications, kinetic hardware, and surface finishes before cutting any raw materials.
What technical information should buyers prepare when requesting a RFQ? +
To provide an accurate engineering quote, please provide: 1) Project location and building type; 2) Opening size schedule or architectural drawings; 3) Preferred opening system (e.g., top-hung sliding, bottom-roller sliding, bi-fold); 4) Glass requirements (single, double tempered, Low-E, acoustic PVB); 5) Frame surface finish and RAL color code; 6) Destination port and required project timeline.
What warranty and after-sales support does BrioWindow provide for overseas shipments? +
We provide a 30-year structural after-sales quality assurance on all primary aluminum profile extrusions, along with a 5-to-10-year warranty on kinetic hardware mechanisms (rollers, locks, soft-closers). We supply comprehensive installation manuals, video walkthroughs, and replacement hardware kits with every export container.
How do top Chinese manufacturers ensure panel flatness on extra-tall (3000mm+) wardrobe doors? +
For tall sliding cupboard door panels exceeding 2400mm, we integrate concealed structural steel tensioner rods embedded directly inside the aluminum vertical stiles. These tensioners allow post-installation Allen-key calibration to counteract thermal expansion or tension variations, ensuring permanent panel flatness and zero track jams.
Ready to Source High-Quality Aluminium Sliding Systems?
Get in touch with our Foshan engineering team today to review your project drawings, request physical profile/finish samples, or receive a factory-direct wholesale quotation.
