Featured Aluminium Folding Window Portfolio
Precision-engineered bi-fold and accordion window series designed for North American, Australian, and European residential & commercial architecture.
Engineered in Foshan · Installed Worldwide
Operating directly out of Nanhai District, Foshan—China’s global center for fenestration engineering—BrioWindow Technology Co., Ltd. combines advanced aluminum profile extrusion, thermal break assembly, and precision CNC fabrication. We supply certified structural window systems engineered specifically for strict local building standards including AS2047 (Australia), NFRC / AAMA (USA), and CSA (Canada).
State of the Art in Bifold Fenestration Manufacturing
An exhaustive technical evaluation of alloy composition, thermal break design, hardware load capabilities, and structural wind resistance.
Primary Aluminum Alloy Engineering (6063-T6 Structural Profile)
The foundation of any high-performance aluminum folding window lies in the structural integrity of its extruded profiles. At BrioWindow, our bifold windows utilize prime-grade 6063-T6 aluminum alloy extrusions, yielding an ultimate tensile strength exceeding 205 MPa and yield strength of 170 MPa. Frame wall thicknesses range from standard 1.4mm for residential applications up to heavy-duty 2.0mm and 3.0mm structural profiles for high-rise commercial balconies and hurricane-prone coastal zones.
Compared to standard secondary aluminum scrap extrusions, primary 6063-T6 billet guarantees superior structural rigidity, preventing panel deflection under high wind loads while providing an ultra-smooth surface canvas for chemical anodizing and electrostatic powder coating applications.

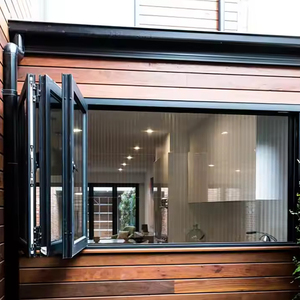

Polyamide Thermal Break Technology (PA66-GF25)
Uninsulated aluminum frames act as thermal bridges, resulting in interior condensation and excessive HVAC energy loss. To solve this, our premium folding window lines incorporate structural PA66-GF25 (Polyamide 66 reinforced with 25% fiberglass) thermal break strips.
By mechanically isolating the exterior aluminum profile from the interior frame, thermal conductivity is reduced from 200 W/m·K (solid aluminum) down to less than 0.3 W/m·K across the thermal barrier. When paired with double or triple insulated glass units (IGU), our folding window systems achieve overall thermal performance figures of U-factor ≤ 0.28 BTU/h·ft²·°F (U-value ≤ 1.6 W/m²K), comfortably exceeding ENERGY STAR®, NFRC, and Title 24 efficiency mandates for modern green building projects.
Technical Matrix: Folding Windows vs. Alternative Systems
Comparative engineering parameters for project managers, facade consultants, and general contractors.
| Performance Standard / Parameter | Aluminium Folding Windows (Bi-Fold) | Heavy-Duty Sliding Windows | Outswing Casement Windows |
|---|---|---|---|
| Maximum Clear Opening Width | Up to 95% of Wall Span | Maximum 50% - 66% (Multi-Track) | 100% per individual leaf opening |
| Frame Profile Thickness | 1.4mm to 2.0mm Heavy Structural Alloy | 1.4mm to 2.0mm Multi-Track Profile | 1.4mm to 1.8mm Standard Profile |
| Thermal Insulation (U-Factor) | U-Factor 0.24 - 0.28 (Thermal Break) | U-Factor 0.28 - 0.34 | U-Factor 0.22 - 0.26 |
| Acoustic Rating (STC / Rw) | STC 35 to STC 42 (Double Glazed Low-E) | STC 30 to STC 36 | STC 38 to STC 45 (Compression Seal) |
| Air Infiltration Rating | < 0.15 cfm/ft² (Dual EPDM Gaskets) | < 0.30 cfm/ft² (Brush Seals) | < 0.10 cfm/ft² (Multi-Point Lock) |
| Water Penetration Resistance | 450 Pa - 600 Pa (Sub-Sill Drainage) | 300 Pa - 450 Pa | 600 Pa+ (Pressure Equalized) |
| Structural Wind Load (DP Rating) | DP50 to DP70 (Hurricane Impact Available) | DP40 to DP60 | DP60 to DP90 |
| Hardware Cycle Test Lifetime | 50,000+ Operational Cycles | 30,000 Cycles | 40,000 Cycles |
B2B Sourcing Trends & Procurement Dynamics (2025–2030)
How international architectural specifications, supply chain realignments, and zero-carbon building mandates are redefining folding window imports from China.
1. Decarbonization Mandates and Ultra-Low U-Value Specs
As green building codes across North America (IECC 2024), Europe (EPBD directives), and Australia (NCC 2022 7-Star Energy Ratings) tighten insulation thresholds, global buyers are rapidly shifting away from non-thermal break profiles toward high-density thermal break folding windows. The integration of warm-edge spacer technology, argon gas filling (90%+ purity), and triple-layer Low-E glass (such as Solarban 60/70 coatings) has transitioned from luxury residential options to mandatory project requirements.
2. Minimalist Sightlines & Ultra-Narrow Interlock Profiles
Modern architectural design prioritizes uninterrupted natural light and panoramic views. Sourcing patterns indicate a 40% year-over-year surge in demand for slim-frame bifold windows featuring visible vertical sightlines under 110mm. Engineering these slim profiles without sacrificing wind-load structural integrity requires advanced high-tensile extrusion alloys, internal steel reinforcements, and top-hung heavy-duty stainless steel carriage hardware capable of supporting panel weights up to 120 kg per leaf.
3. Integrated Indoor-Outdoor Living & Kitchen Servery Windows

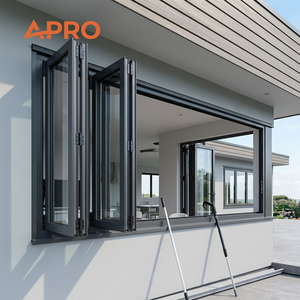

Commercial hospitality (bars, restaurants, cafes) and luxury residential patio projects are increasingly replacing traditional solid walls and standard windows with pass-through folding servery windows. These bottom-track flush or fold-up gas-strut bifold configurations create seamless continuous counters between indoor kitchens and outdoor entertainment decks. Buyers are prioritizing hardware options such as flush sub-sills with hidden drainage channels to ensure DDA (Disability Discrimination Act) compliance and zero-step zero-tripping transitions.
4. Modular Pre-assembly and Standardized Factory QA Testing
High overseas job-site labor costs in the US, Canada, and Australia have reshaped commercial procurement strategies. Importers and general contractors now require Chinese manufacturers to execute 100% pre-assembly and alignment testing in-factory prior to crating. Frame squareness, hinge tolerance, multi-point lock engagement, and weatherseal compression must be factory-verified. Units are shipped fully fabricated or in pre-assembled knock-down (KD) kits with color-coded hardware tags and step-by-step installation shop drawings to reduce job site installation hours by up to 60%.
Manufacturing Rigor & Global Supply Assurance
Direct factory manufacturing capabilities from Foshan backed by certified quality engineering and international project experience.
Global Certification & Testing
Products are rigorously tested to comply with Australian AS2047/AS1288, North American NFRC/AAMA, and European CE fenestration standards, ensuring effortless building permit approval.
Custom OEM/ODM Engineering
Full custom profile extrusion, powder coating matching (RAL / AkzoNobel), glass tinting, mesh integrations, and tailored dimensioning tailored precisely to your project drawings.
Direct Export to 60+ Countries
A decade of specialized international logistics experience. We manage DDP/CIF container loading, steel-stillages packaging, moisture protection, and custom documentation clearance.
Premium Hardware Systems
Equipped with German-engineered Siegenia / HOPPE or top-tier custom stainless steel hardware systems tested for 50,000+ opening cycles with zero sagging or binding.
30-Year Quality Assurance
We stand behind our extrusions, anodizing/coating finishes, and structural assembly with an industry-leading 30-year limited factory warranty and technical support.
Complete Fenestration Integration
Single-source procurement across your entire project: Bifold windows, sliding doors, swing doors, casement windows, pivot doors, curtain walls, and smart motorized openings.
Key Engineering Innovations in Modern Folding Windows
Discover how advanced fenestration technology improves energy metrics, acoustic isolation, and architectural aesthetics.
90-Degree Postless Corner Bifold Configurations
One of the most dramatic developments in architectural fenestration is the postless 90-degree corner folding window system. By utilizing dual meeting panels equipped with floating magnetic corner seals and structural interlocks, an entire corner of a room can be opened without a static vertical column.
Triple-Glazed Acoustic Laminated Glass Formulations
For urban residences, commercial venues, and airport flight path zones, standard double glazing often falls short of acoustic attenuation demands. Our folding window series can be configured with acoustic laminated glass combinations (e.g., 6mm toughened + 1.52mm PVB/Acoustic Interlayer + 6mm toughened + 12Ar + 6mm Low-E), yielding sound reduction indices up to STC 42 / Rw 41 dB. This dramatically cuts outdoor traffic and ambient noise while optimizing solar heat gain coefficients (SHGC).
Flush Track Drainage & DDA Barrier-Free Thresholds
Traditional high-lip window frames create trip hazards and impede wheel traffic. Our latest folding window designs feature concealed sub-sill drainage tracks equipped with one-way stainless steel check valves. Rainwater is efficiently channeled outward via gravity, while the top of the track sits completely flush with finished interior floor levels, blending interior living areas seamlessly with exterior patios.
Smart Automation & Motorized Folding Drive Systems
For high-wall installations, heavy commercial spans, or smart home integration, manual folding operation can be upgraded to concealed motorized belt-drive or linear actuator automation. Integrated with building management systems (BMS), smart rain sensors automatically close the folding panels upon sensing precipitation, while wind sensors secure panel locks during high-wind events.
Frequently Asked Questions (B2B Procurement FAQ)
Addressing common technical, compliance, shipping, and customization inquiries from overseas buyers.
What certifications do your aluminum folding windows hold for North America and Australia? +
How do you guarantee frame alignment and hardware smoothness prior to shipment? +
Can your factory produce bi-fold windows based on custom architectural CAD/BIM drawings? +
What hardware options and finishes are available for heavy-use commercial folding windows? +
What surface treatment finishes do you offer for harsh coastal or high-UV environments? +
How are units packaged to prevent damage during ocean container transport? +
What is your typical production lead time and Minimum Order Quantity (MOQ)? +
Ready to Source High-Performance Aluminium Folding Windows?
Partner directly with Foshan's premier fenestration manufacturer. Connect with our senior engineering team to receive technical consultations, instant preliminary quotes, or custom CAD shop drawing reviews.
