Precision-Engineered Aluminum Door & Window Systems
Selected architectural glazing solutions designed for high wind-load resistance, acoustic dampening, and extreme thermal insulation across North America, Australia, and European markets.
Hot Sale Double Glazed House Windows Low-E Glass Aluminum Profile Sliding Windows
Inquire Now
Low E Double Glass Aluminium Black Frame Bifold Windows Soundproof NFRC Exterior
Inquire Now
Modern Water Resistant European Corner Joint 11X7 Adjustable Bracket Window Frames
Inquire Now

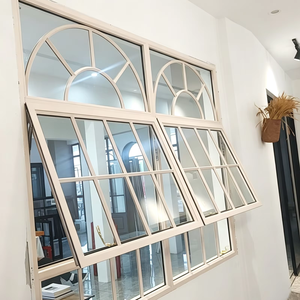

Factory Custom French Retro Grill Louver Windproof Waterproof Top Hung Awning Window
Inquire Now
Customized Size Aluminum Double Large Glass Fixed French Doors for Villa Projects
Inquire Now
Custom Villa Main Entrance Aluminum Casement Door Double Tempered Thermal Insulation
Inquire Now
High Quality Tilt and Turn Drifting Double Glazed Sliding Drift Aluminum Windows Low-E
Inquire Now
Modern House Aluminum Sliding Door Double Tempered Glass Soundproof Patio Systems
Inquire NowArchitectural Mechanics of Heavy-Duty Aluminium Folding Stacking Doors
In modern architectural design, the boundary between indoor living areas and exterior landscapes is increasingly blurred. Heavy-duty aluminum folding stacking door systems (bifold doors) represent the peak of fenestration engineering, providing up to 95% unobstructed clear openings while maintaining extreme weatherproofing when sealed.
Structural Alloy Integrity
Fabricated using primary 6063-T5 or high-grade 6060-T66 extruded aluminum profiles with wall thicknesses ranging from 2.0mm to 3.0mm. Designed to carry heavy double and triple insulated glass units up to 120 kg per door panel without sag or deformation over decades of continuous cycling.
Polyamide Thermal Breaks
Utilizing imported German-engineered Technoform PA66-GF25 (25% fiberglass reinforced polyamide) thermal break strips. This structural bridge isolates exterior temperature transfer, preventing condensation and lowering building overall HVAC energy consumption by up to 40%.
Bottom-Load Stainless Rollers
Equipped with heavy-duty quad-wheel stainless steel 316 roller carriages running on concealed anodized aluminum tracks. Bottom-hung weight distribution transfers structural load directly to the floor slab, guaranteeing ultra-smooth, whisper-quiet one-finger sliding movement.
| Performance Standard | Folding Stacking Doors | Standard Lift & Slide Doors | Heavy-Duty Multi-Slide Doors |
|---|---|---|---|
| Maximum Clear Opening Ratio | 92% - 95% | 50% - 65% | 66% - 75% |
| Thermal Insulation (U-Value) | 1.2 - 1.8 W/m²K | 1.4 - 2.0 W/m²K | 1.5 - 2.2 W/m²K |
| Air Infiltration Rating | Class 4 (EN 12207) / ASTM E283 | Class 4 (EN 12207) | Class 3 (EN 12207) |
| Water Penetration Resistance | 750 Pa (High Threshold) | 600 Pa | 450 Pa |
| Acoustic Isolation (STC Rating) | STC 38 - 43 dB | STC 35 - 40 dB | STC 32 - 38 dB |
| Hardware Load Bearing Capacity | Up to 120 kg / Panel | Up to 400 kg / Leaf | Up to 250 kg / Leaf |
Global Sourcing & Procurement Trends for Architectural Fenestration
As commercial developers, villa owners, and institutional architects demand elevated performance standards, purchasing trends for aluminum folding stacking doors are undergoing massive technological shifts.
1. Minimalist Sightlines & Ultra-Slim Stacking Profiles
Global architecture is moving away from bulky 100mm+ frame sightlines. Market demand is shifting rapidly toward ultra-narrow vertical stiles (as thin as 28mm to 45mm visible width) that maximize natural daylighting while maintaining wind-load structural resistance in high-rise coastal villas and resort developments.
2. Flush Barrier-Free Zero-Threshold Systems (ADA Compliant)
Transitioning between interior luxury living spaces and exterior entertainment decks now requires integrated drainage channels flush with finished flooring. Modern folding stacking door designs utilize recessed tracks with hidden continuous linear drains to prevent rainwater ingress while ensuring zero trip hazards.
3. High-Performance Triple Glazing & Vacuum Insulated Glass (VIG)
With global green building codes enforcing stricter carbon reduction mandates (such as US Title 24, Australian NCC Section J, and European EPBD), procurement specifications require Low-E coated double/triple argon-filled glass units or cutting-edge Vacuum Insulated Glass achieving U-values below 1.0 W/m²K.
4. Motorized Automation & Smart Building Integration
Large-scale architectural folding systems are increasingly retrofitted with heavy-duty hidden electric actuators. Integrated smart sensors automatically close door configurations during sudden rainfall or high-wind storm events while connecting seamlessly to KNX or Creston home automation systems.
Future Development Trends in Aluminum Door Manufacturing
As China's leading fenestration manufacturing cluster in Foshan advances, next-generation manufacturing processes are elevating the structural durability and aesthetic possibilities of folding door systems.
Advanced Surface Finishes & PVDF Coatings
Transitioning from basic anodizing to PPG AkzoNobel Fluorocarbon (PVDF) 3-coat spraying and hyper-durable Qualicoat Class 2 powder coatings. Offers 30+ years of resistance against salt-spray corrosion, UV chalking, and color fading in coastal environments.
Multi-Point Security Locking Hardware
Integration of heavy-duty stainless steel shot-bolt locking mechanisms operating at top, middle, and bottom connection points. Coupled with anti-lift pins and European profile anti-snap lock cylinders to meet rigorous RC2/RC3 burglar resistance standards.
Seamless Corner & Pin Injection Technology
Abandoning traditional mechanical screwed joints. Modern manufacturing employs precision 45-degree aluminum corner keys injected with dual-component structural glue (Weiss Cosmopen) to ensure permanent structural rigidity and zero water leakage at frame joints.
China's Premier OEM/ODM Aluminium Door Supplier in Foshan
BrioWindow Technology Co., Ltd. operates from Nanhai District, Foshan City—the epicenter of global aluminum profile manufacturing. We combine 10+ years of export expertise with complete end-to-end quality control to serve clients across 60+ countries.
Foshan Hub Advantage
Direct sourcing from top-tier aluminum alloy extruders allows strict chemical purity control, competitive pricing, and rapid raw material lead times.
30-Year Warranty
Every structural profile and glass configuration is backed by a 30-year limited quality guarantee, providing long-term reliability for overseas distributors.
BIM & CAD Engineering
Our dedicated engineering department converts complex project architectural schedules into detailed 2D/3D shop drawings and BIM models prior to cutting.
Export Seaworthy Packaging
All door units undergo 100% dry assembly testing before being packed in fully enclosed plywood crates with protective PE film and corner foam guards.
Frequently Asked Questions by Overseas B2B Buyers
Essential engineering and logistics guidance for architects, builders, and fenestration importers sourcing folding stacking doors from China.
1. What architectural dimensions and panel limit configurations are supported for folding stacking doors?
Our aluminum folding stacking door systems support individual panel widths ranging from 600mm to 1200mm and maximum panel heights up to 3500mm. Systems can be configured with anywhere from 2 panels up to 16 panels in total folding setups (such as 3+0, 3+1, 5+1, 7+0, or 8+8 double-ended stacking arrangements). For extra-tall structural openings exceeding 3.5 meters, our engineers integrate internal structural steel sleeve reinforcements within the aluminum mullions to withstand extreme wind deflection forces.
2. How do your folding door systems prevent water penetration during heavy storms?
Water resistance is guaranteed through a triple-sealing mechanism: continuous EPDM (Ethylene Propylene Diene Monomer) gasket seals along all panel interlocks, overlapping concealed weather brushes, and high-performance weather-sealed threshold tracks. We offer both step-down high-performance sills (rated up to 750 Pa water tightness) for exterior exposure and sub-floor drainage track systems equipped with check valves that automatically release rainwater while blocking wind blowback.
3. Which international testing standards and structural certifications do your products comply with?
BrioWindow aluminum doors and windows are manufactured strictly under ISO9001 quality management systems. Our export product ranges comply with standard testing benchmarks across major global jurisdictions: North American NFRC (Thermal U-factor and SHGC), AAMA/WDMA/CSA 101/I.S.2/A440 standards, Australian AS2047 and AS1288 structural glass requirements, as well as European CE certification (EN 14351-1). Certified laboratory test reports are provided to qualified buyers for tender submision.
4. What glass configurations are recommended for optimal energy efficiency and soundproofing?
We supply fully tempered safety glass (IGU) certified under SGCC (USA) and AS/NZS 2208 (Australia). For maximum acoustic dampening (STC 40+ dB) and thermal performance, we recommend 5mm Low-E Tempered + 12mm Argon Gas Spacer + 5mm Clear Tempered double glazing, or 6mm Low-E + 12Ar + 6mm Laminated (3.38mm PVB) glass for high-security applications. Triple glazing units with double Low-E coatings are available for cold climates requiring U-values under 1.2 W/m²K.
5. What is the standard production lead time and how are shipments protected against ocean freight damage?
Standard fabrication lead time is 25 to 35 calendar days following final approved shop drawing sign-off and color sample confirmation. To ensure 0% transit damage during long-distance LCL or FCL ocean container shipping, door panels are individually wrapped in protective scratch-resistant film, padded with corner protective sleeves, packed into moisture-vapor barrier bags, and secured inside steel-banded IPPC-certified fumigated plywood A-frame crates.
6. How does BrioWindow handle technical support, installation guidance, and spare parts support overseas?
Every order is supplied with detailed 3D installation manuals, step-by-step video instructions, and hardware adjustment guides tailored to your exact opening configuration. Our technical engineering team provides real-time video call support during job-site installation. Furthermore, a 2% spare hardware kit (including extra roller bearings, EPDM seals, hinges, and handles) is included free of charge with every commercial container shipment.
Ready to Upgrade Your Next Project with Premium China Aluminium Doors?
Partner directly with Foshan's leading export factory. Contact our engineering team today for instant project estimates, structural calculations, CAD shop drawing reviews, and factory-direct wholesale pricing.
