Featured Fancy Door & Architectural Systems
Engineered in Foshan to exceed international structural, wind-load, and thermal performance standards for residential luxury villas and high-end commercial developments.
Custom New High End Heavy Duty Cast Aluminium Entrance Security Exterior Front Double Pivot Door For Villas Houses Hotels
Get Catalog
CSA Certified Narrow Frame Tilt Turn Windows Large Opening Slim Profile Aluminum Windows For Toronto Residential
Get Catalog
Custom Made Solid Modern Wood Casement Window Premium Wood Frame windows For Villa House and Luxury Projects
Get Catalog
Puertas Plegables De Aluminio Concertina Folding Doors Glass Door Patio Accordion Folding Doors
Get Catalog
Slim Frame Aluminum Casement Window Stainless Steel Double Glass Thermal Break Modern Swing High End Architectural Minimalist
Get Catalog

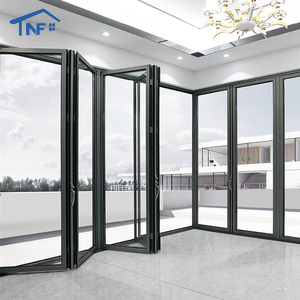

US NFRC Certification Customized Factory Aluminum Balcony Exterior Folding Tempered Glass Doors
Get Catalog

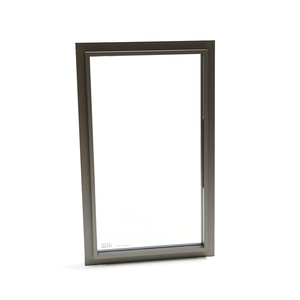

No Built-In Handle Designed For Hinged Cabinet Doors Decorative Frame Kitchen Cabinet Aluminum Frame Glass Door
Get Catalog
Modern Style Aluminum Double Tempered Frosted Glass Bathroom/Bedroom/Toilet Door Manual Opening For Hotels
Get CatalogEngineering Excellence in Architectural Fancy Aluminium Doors
An in-depth analysis of structural extrusion alloys, thermal break insulation dynamics, surface anodization, and hardware mechanics defining China's top export-grade door systems.
High-Precision 6063-T5 / T6 Alloy Profiles
The core structural integrity of luxury fancy doors depends heavily on raw billet metallurgy. Standard commercial doors frequently employ recycled aluminium scrap, leading to micro-cracks under structural wind loads. Premium Foshan export facilities exclusively extrude prime 6063-T5 and 6060-T66 virgin aluminium billets.
- Tensile Strength: Yield strengths exceeding 205 MPa for heavy-duty pivot structural frames.
- Wall Thickness Rigidity: Structural profile web thickness engineered between 2.0mm to 3.0mm, adhering strictly to ASTM B221 benchmarks.
- Cast Aluminium Inlays: Solid cast entrance panels ranging from 8mm to 12mm plate thickness for ballistic-grade residential security.
PA66GF25 Thermal Insulation & Acoustic Barrier
Modern architectural codes in North America (NFRC/Energy Star) and Australia (NCC WERS) demand strict thermal performance. Cheap PVC thermal bridges fail over time under severe freeze-thaw cycles. Premium aluminium fancy doors incorporate Polyamide PA66 reinforced with 25% glass fiber.
- Low U-Values: Achieves frame U-factors down to 1.2 W/m²K (0.21 BTU/h·ft²·°F) when combined with triple Low-E argon-filled IGUs.
- Acoustic Isolation: Sound Transmission Class (STC) ratings reaching STC 42 dB to effectively suppress outdoor urban noise.
- Multi-Cavity Pressure Sealing: EPDM ternary rubber gaskets providing continuous double and triple compression barrier seals.
Qualicoat Class 2 & Fluorocarbon PVDF Coatings
Exterior architectural doors must withstand relentless solar ultraviolet radiation, coastal salt spray, and extreme humidity without fading, chalking, or blistering. Precision export manufacturing applies rigorous surface pre-treatment followed by electrostatic fluorocarbon spray or anodizing.
- PVDF Coatings: 3-Coat Kynar 500 / Hylar 5000 fluorocarbon finishes offering 25+ year color retention guarantees.
- Qualicoat Architectural Powder: Superdurable architectural coatings conforming to AAMA 2604 / 2605 specifications.
- Anodized Metal Aesthetics: Electrochemical anodic oxide films (up to 25 microns) offering metallic champagne, bronze, and matte jet black textures.
Architectural Fancy Door Performance Matrix
Compare key structural performance indicators across primary custom door classifications to determine the optimal configuration for your structural openings.
| Fancy Door Typology | Structural Profile Alloy | Max Panel Height / Load | Thermal U-Factor Range | Acoustic Rating (STC) | Primary Target Application |
|---|---|---|---|---|---|
| Heavy-Duty Cast Aluminium Pivot Door | 6063-T6 / 10mm Cast Plate | Up to 6,000 mm / 800 kg | 1.4 - 1.8 W/m²K | STC 38 - 42 dB | Luxury Villa Entrances, Hotel Lobbies |
| Slim-Profile Concertina Bi-Fold Door | 6063-T5 Polyamide Break | Up to 4,000 mm / 300 kg panel | 1.2 - 1.6 W/m²K | STC 36 - 40 dB | Patio Transitions, Restaurant Terraces |
| Ultra-Slim Interlock Sliding Door | 6060-T66 High-Strength Alloy | Up to 4,500 mm / 500 kg panel | 1.1 - 1.5 W/m²K | STC 35 - 39 dB | Panoramic Oceanfront Balconies, Patios |
| Alu-Clad Solid Wood Casement Door | Red Oak / Teak + 6063-T5 | Up to 3,200 mm / 180 kg panel | 0.9 - 1.3 W/m²K | STC 40 - 45 dB | Heritage Estates, Passive House Builds |
| Smart Motorized Central Axis Door | 6063-T6 Structural Profile | Up to 5,000 mm / 600 kg panel | 1.3 - 1.7 W/m²K | STC 37 - 41 dB | Smart Commercial Towers, Executive Residences |
Future Procurement Trends in Fancy Aluminium Doors
Global demand shifts towards minimalist aesthetics, decarbonized material sourcing, and smart building integration are reshaping the export landscape for architectural fenestration.
1. Minimalist Sightlines & Ultra-Slim Profiles
Architects worldwide are phasing out bulky traditional frames in favor of ultra-narrow stiles. Modern buyers demand center interlock sightlines as narrow as 16mm to 20mm while maintaining high structural wind resistance. Concealed outer frames embedded flush into drywall and finished floor lines are rapidly becoming standard in high-end villa procurement schedules.
2. Smart Automation & Biometric Access
Fancy entrance doors are evolving from manual mechanical fixtures into active smart IoT access nodes. Top global buyers now routinely specify German-engineered motorized multipoint locking systems (such as Siegenia or GU), facial recognition biometric scanners, electromagnetic drop bolts, and seamless pairing with modern home automation systems (Control4, Crestron, KNX).
3. Low-Carbon Sourcing & EPD Compliance
Environmental Product Declarations (EPD) and recycled aluminium content verification have shifted from niche request to mandatory tender requirement in the EU, North America, and Australia. Export leaders are adopting hydro-powered low-carbon aluminium billets, reducing embodied carbon footprints below 4.0 kg CO2e per kg of aluminium extruded.
Why Partner with BrioWindow Technology Co., Ltd.?
Headquartered in Foshan, China—the world's premier aluminium production capital—BrioWindow brings over a decade of direct export mastery and rigorous quality governance to your doorstep.
Direct Manufacturing Authority in Nanhai, Foshan
Located at Lisui Avenue Middle, Lishui Town, Nanhai District, Foshan City, BrioWindow operates advanced CNC machining centers, automated corner-crimping lines, and insulated glass unit (IGU) assembly lines. Our geographic positioning gives us direct access to world-class extrusion alloys, specialized hardware foundries, and international container shipping ports.
- 10+ Years Export Specialization: Proven track record serving general contractors, architectural firms, and fenestration importers across the US, Canada, Australia, and 60+ countries.
- Rigorous Certification Standard: Fully certified under US NFRC thermal standards, Canadian CSA window safety guidelines, and Australian AS2047/AS1288 structural glass regulations.
- 30-Year After-Sales Quality Assurance: Structural frame durability backed by an industry-leading 30-year warranty, backed by full technical shop drawing support.
- Single-Source Solution: Seamlessly ordering aluminum sliding, swing, bi-fold, and heavy pivot doors along with matching PVC windows, curtain walls, and solid wooden doors under one factory contract.
OEM / ODM Engineering Support Workflow
Our in-house engineering team bridges the gap between architectural concept drawings and site installation. Here is how we ensure zero error margins:
Evaluation of CAD/BIM architectural elevation files against local building codes and wind pressures.
Issuance of millimeter-accurate shop drawings, glass schedules, and corner profile color samples.
100% pre-assembly air/water tight testing followed by heavy-duty steel-reinforced wood crate packaging.
Frequently Asked Procurement Questions
Detailed technical and logistical answers for architects, general contractors, and overseas door importers evaluating Chinese manufacturers.
What specific types of fancy aluminium doors does your factory manufacture?
BrioWindow specializes in custom architectural-grade entrance and exterior door systems. Our primary fancy door portfolio includes: heavy-duty cast aluminium pivot security doors, ultra-slim profile sliding doors with concealed frames, concertina accordion bi-fold doors, modern tilt-turn casement doors, alu-clad solid wood interior/exterior doors, smart motorized central axis doors, and decorative aluminium-frame glass cabinet doors. All systems are custom-fabricated according to opening dimensions provided in architectural project drawings.
How does your factory ensure compliance with North American and Australian building codes?
We work directly with certified third-party testing laboratories (such as Intertek and SGS) to verify our window and door systems. Our products comply with US NFRC thermal rating criteria, Canadian CSA window guidelines, and Australian AS2047 (Windows in Buildings) / AS1288 (Glass in Buildings) standard specifications. Before full production, our engineering team reviews your site location requirements—such as design wind pressure (DP ratings), water penetration resistance, and acoustic STC targets—and specs profiles and glass units accordingly.
What glass configurations can be integrated into your custom aluminium doors?
We offer a comprehensive range of insulated glass units (IGU) manufactured with high-grade SGCC / CE certified tempered safety glass. Options include double-glazed (e.g., 6mm + 12Ar + 6mm) and triple-glazed configurations, Low-E energy-efficient coatings (Single, Double, or Triple Silver Low-E), warm-edge spacers, argon gas filling, laminated hurricane-impact glass (PVB or SGP interlayers), electrochromic smart privacy glass, frosted privacy glass, and acoustic acoustic-dampening laminated glass panes.
What architectural hardware brands and locking mechanisms do you supply?
To ensure long-term mechanical reliability, we partner with top-tier international and premier domestic hardware suppliers. Standard offerings include German hardware brands such as Siegenia, Hoppe, GU, and HAUTAU for tilt-turn and heavy folding systems. For pivot doors, we utilize heavy-duty floor springs and pivot hinges capable of supporting up to 800 kg per panel leaf. Multipoint keyless electronic locks, smart fingerprint locks, and motorized remote actuators can also be pre-installed and wired directly during factory assembly.
What information is required to receive a formal project quotation and CAD shop drawings?
To provide an accurate engineering quote, please prepare: (1) Architectural window/door schedules or elevation CAD drawings detailing opening dimensions, (2) Preferred opening system type (pivot, sliding, bi-fold, swing), (3) Glass performance requirements (double/triple, Low-E, acoustic laminated), (4) Frame surface finish and color (RAL powder coat, PVDF, anodized), and (5) Project location or destination port for freight and compliance calculations.
What packaging and ocean freight protection protocols are used for long-distance transport?
All finished door panels and assembled frame sub-components undergo multi-layer protective packaging. Panels are wrapped in protective PE anti-scratch film, corner-shielded with high-density EPE foam, and encased in fully sealed, non-fumigation plywood crates with internal steel strapping. This prevents frame torque, glass stress fractures, and moisture damage during sea shipping in containerized ocean vessels.
Request Technical Specifications & Factory Catalog
Connect directly with BrioWindow's engineering sales team in Foshan. Receive customized shop drawings, CAD files, sample kits, and wholesale factory pricing within 24 hours.
