Product Catalog
Featured Architectural Corner & Specialized Window Systems
Factory-direct thermal break profiles, minimalist structural corner glazing, and custom architectural solutions engineered in Foshan, China for international compliance.
Modern Customized Curved Glass Arched Minimalist Aluminum Casement Window
Inquire Now
MG20RW Radius Corner Flat Window Black Powder Coated Aluminum Frame
Inquire Now

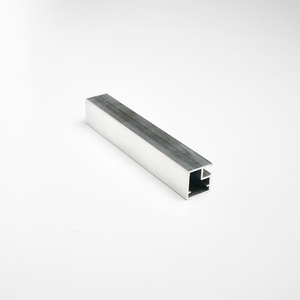

Aluminium Glass Smart 4mm Tempered Glass Aluminum Corner Frame System
Inquire Now
Minimalist Panoramic Corner Bay Window Thermal Break Aluminum System
Inquire Now
Round Corner Safety Aluminum Window Profile for Institutional Construction
Inquire Now
Slim Frame Thermal Break Casement Window Double Glass Architectural Minimalist
Inquire Now
Heavy-Duty Acoustic Noise Cancelling Corner Aluminum Glass Window
Inquire Now
Manufacturing Authority
BrioWindow Global Fenestration Engineering Benchmarks
10+ Years
B2B Manufacturing & Export Leadership
60+
Global Markets (USA, CA, AU, EU)
30-Year
Structural Quality & Finish Assurance
PA66-GF25
Polyamide Thermal Barrier Standard
Technical Insight
Engineering Modern Architectural Aluminum Corner Windows: Structural Integrity & Thermal Optimization
Architectural design has evolved dramatically over the last decade, with modern high-end residential villas, commercial landmarks, and institutional projects demanding continuous visual connection between indoor living spaces and external landscapes. Aluminum corner windows—specifically 90-degree postless glass-to-glass configurations and reinforced thermal break corner casement systems—stand at the absolute forefront of this design revolution.
As a leading Foshan-based manufacturer, BrioWindow Technology Co., Ltd. combines precision extrusion engineering with high-performance glazing technology. Designing and exporting custom aluminum corner windows requires solving critical physical challenges: structural deflection under extreme wind pressure, thermal bridging at vertical junctions, and long-term water tightness along multi-planar silicone joints.
Key Engineering Insight (Information Gain): Unlike conventional standard casements, postless corner windows eliminate the heavy vertical structural mullion at the 90° intersection. They rely entirely on structural double-sealed silicone joints (such as Dow Corning 983 or SikaSil IG-25) paired with step-cut Insulated Glass Units (IGUs). This structural configuration delivers an uninterrupted 270-degree panoramic view while maintaining full resistance against negative pressure wind loads up to 5,000 Pa.
Glass-to-Glass Corner vs. Reinforced Structural Corner Post: An Engineering Evaluation
When specifying aluminum corner windows for international projects across North America, Australia, and the Middle East, structural engineers and architects must evaluate two distinct structural paradigms:
Postless Glass-to-Glass
Maximum transparency featuring two glass lites joining at a 90° mitred corner sealed with high-modulus UV-resistant structural silicone. Ideal for luxury residential bay windows and scenic view corridors.
Thermal Break Corner Post
Utilizes an integrated aluminum corner extrusion reinforced with dual PA66-GF25 polyamide thermal struts. Essential for multi-story high-rise buildings requiring higher load-bearing capacity and extreme air tightness.
Hybrid Acoustic Corner
Combines heavy-gauge 6063-T6 aluminum profile geometry (profile wall thickness up to 2.0mm–3.0mm) with asymmetric acoustic laminated glazing (e.g., 6mm Low-E + 12A + 5mm + 0.76PVB + 5mm) to reduce noise by up to 45 dB.
Thermal Efficiency & U-Factor Compliance for Green Building Standards
Energy efficiency codes such as Title 24 in California, the National Construction Code (NCC) in Australia, and European Passive House standards require low overall U-factors and Solar Heat Gain Coefficients (SHGC). Standard aluminum is a high-conductivity material ($K \approx 200 \text{ W/m}\cdot\text{K}$). To prevent severe energy loss and internal condensation at interior corners, BrioWindow incorporates 24mm to 34mm polyamide (PA66-GF25) thermal barriers within all extrusion profiles.
When combined with warm-edge spacers (such as Technoform or Swisspacer) and triple-pane argon-filled Low-E glass coatings, overall system U-values drop to as low as 1.1 W/m²K (0.19 BTU/h·ft²·°F), making these corner assemblies suitable for cold northern climates as well as tropical high-heat regions.
Industry Analysis
Future Development & Procurement Trends in Aluminum Corner Windows
Key market shifts driving global B2B procurement strategies for commercial developers, fenestration importers, and architectural specifiers over the next decade.
1. Ultra-Slim Sightlines & Postless Architecture
Commercial and high-end residential clients increasingly reject heavy frame profiles. Sourcing trends prioritize ultra-narrow interlock profiles (as thin as 18mm sightlines) and postless 90° corners that maximize daylight harvesting and architectural minimalism without compromising wind pressure ratings.
2. Vacuum Insulated Glass (VIG) & Smart Glazing
Next-generation corner window assemblies are integrating Vacuum Insulated Glass (VIG) units which achieve R-values matching insulated walls ($R > 10$) in profiles less than 8mm thick. Furthermore, electrochromic smart glass allows automated opacity tuning via building management systems (BMS).
3. Rigorous Structural & Cyclone Testing (AS2047 / NFRC)
Global buyers are shifting away from uncertified suppliers. Procurement specifications strictly require full Fenestration Rating Council (NFRC) performance data, AS2047 Australian certification (water testing up to 700 Pa, ultimate wind loads > 4500 Pa), and Florida Building Code (FBC) impact compliance.
Engineering Matrix
Technical Specification & Performance Comparison
Compare structural specifications across BrioWindow corner window typologies to align with your project structural schedules.
| System Typology | Aluminum Profile Alloy | Max Glass Thickness | Wind Load Resistance | Acoustic Rating (STC) | U-Factor ($W/m^2K$) | Primary B2B Application |
|---|---|---|---|---|---|---|
| Postless 90° Glass Corner | 6063-T6 (2.0mm thickness) | 6mm Low-E + 16A + 6mm / Triple IGU | Class C5 (Up to 5000 Pa) | 38 - 42 dB | 1.2 - 1.5 | Luxury Villas, Coastal Residences |
| Thermal Break Corner Casement | 6063-T6 / PA66-GF25 Strut | 8mm + 12A + 6mm Laminated | Class C4 (3500 Pa) | 40 - 45 dB | 1.1 - 1.4 | High-Rise Residential, Commercial |
| MG20RW Radius Corner Window | Powder-Coated Alloy Frame | 4mm - 6mm Toughened Acrylic/Glass | Class C2 (2000 Pa) | 28 - 32 dB | 2.2 - 2.8 | RVs, Custom Cabins, Prefab Pods |
| Institutional Safety Round Corner | Heavy Aluminum Profile | 5mm + 9A + 5mm Safety Tempered | Class C3 (2500 Pa) | 35 - 38 dB | 1.6 - 1.9 | Kindergartens, Schools, Healthcare |
| Louvered Glass Jalousie Corner | Architectural Anodized Frame | 9mm / 10mm Single/Double Panel | Class C2 (1800 Pa) | 25 - 30 dB | 3.0 - 3.5 | Tropical Ventilation, Sunrooms |
Enterprise Advantage
Why Partner with BrioWindow Technology Co., Ltd. (Foshan, China)
Headquartered in Nanhai District, Foshan—the globally recognized hub of aluminum fenestration—we offer seamless B2B manufacturing and international export service.
Foshan Extrusion Ecosystem
Direct integration with primary 6063-T5/T6 billet foundries and specialized powder-coating lines (AkzoNobel / PPG Certified). BrioWindow maintains strict dimensional tolerances within ±0.15mm across complex 90-degree corner profile extrusions.
Dedicated Engineering & BIM Support
Our in-house technical team translates client architectural CAD elevations into factory production shop drawings, structural wind load calculations, and thermal modeling to ensure effortless installation on site.
Global Export Freight Protection
Over 10 years of exporting experience to the USA, Canada, Australia, and 60+ countries. Every unit is packed in fully enclosed ISPM-15 fumigated plywood crates with corner rubber protectors and desiccants for ocean transit.
Execution Protocol
BrioWindow B2B Procurement & Fabrication Workflow
From initial drawing submittal to final ocean container loading—our standardized 6-step quality control protocol.
Step 01
Architectural Drawing & Schedule Review
Client submits DWG/PDF window schedules, target wind load pressures, glass specifications, and anodizing/powder color codes.
Step 02
Engineering Shop Drawing Confirmation
BrioWindow engineers prepare 1:1 scale corner extrusion section details, glass step-cut dimensions, and hardware anchorage points for client approval.
Step 03
Precision CNC Cutting & Corner Crimping
Aluminum profiles are cut using automated double-head CNC saws. Corners undergo mechanical corner key insertion and high-pressure hydraulic crimping with German corner glue.
Step 04
Insulated Glass Unit (IGU) Fabrication
Toughened glass panes undergo Low-E magnetron sputtering, warm-edge spacer bending, automated 90% argon gas injection, and structural silicone perimeter sealing.
Step 05
Factory Mock-Up & Pre-Shipment Inspection
Complete assembly mock-ups are erected in-factory to verify 90° squareness, sash smooth operation, weather-strip compression, and water tightness.
Step 06
Export Crating & Technical Installation Support
Units are labeled per window schedule ID and packaged into heavy-duty export crates. Installation manuals and remote engineering assistance are provided.
Procurement FAQ
Frequently Asked Questions for B2B Importers & Specifiers
Addressing structural, thermal, shipping, and customization queries when importing aluminum corner windows from China.
How do postless glass-to-glass corner windows prevent water leakage and structural seal failure?
Postless corner windows utilize a structural silicone joint specifically engineered for high structural load transfer and differential thermal expansion. At BrioWindow, the vertical glass-to-glass corner joint is stepped and sealed with structural silicone (such as Dow Corning 983 two-component silicone) which has high movement capability (±25% to ±50%) and high tensile strength. Furthermore, internal sub-framing drainage channels route any micro-condensation out through hidden exterior weep holes.
What testing standards and certifications do BrioWindow products conform to?
Our window and door systems are engineered and tested in accordance with international standards. We provide laboratory test reports matching AS2047 (Australia), ASTM E283 / E330 / E331 (USA), and CE EN 14351-1 (Europe). Products shipped to North American markets feature optional NFRC thermal certification and SGCC certified toughened glass.
Can BrioWindow manufacture custom sizes, angles, and colors?
Yes. 100% of our production is tailored to project-specific opening schedules. We manufacture non-standard corner angles (e.g., 45°, 120°, 135° bay corners) as well as traditional 90° corners. Frame surface finishes include architectural powder coating (RAL color match), anodizing (silver, bronze, black), fluorocarbon (PVDF) for aggressive coastal environments, and realistic woodgrain heat-transfer finishes.
What information should buyers prepare before requesting a formal commercial quotation?
To provide an accurate engineering quote, please prepare: (1) Window/Door schedule showing opening sizes and typologies; (2) Architectural elevations or CAD drawings; (3) Glass configuration requirements (e.g., double Low-E, acoustic laminated, clear, tinted); (4) Desired frame finish and color; (5) Project location and target building code compliance requirements.
How are delicate panoramic corner glass units protected against damage during ocean freight?
We use specialized export-grade wooden crating designed for heavy glass and oversized frames. Glass edges are wrapped in protective polyethylene foam corner guards, and individual units are separated by cork pads. Crates are built with internal steel strapping and wrapped in moisture-barrier film, preventing shifting inside shipping containers even during rough sea conditions.
What after-sales support and structural warranty does BrioWindow provide?
We provide a 30-year limited structural warranty on aluminum profile extrusions, a 10-year warranty on Insulated Glass Units against seal failure and internal fogging, and up to 10 years on premium hardware systems (e.g., Siegenia, Hoppe, or German GU hardware). We supply spare hardware components and offer direct engineering support for installation queries.
Start Your Sourcing Journey
Ready to Specify Premium Aluminum Corner Windows for Your Project?
Connect directly with BrioWindow’s technical export team in Foshan, China. Get custom CAD shop drawings, glass thermal calculations, and competitive factory-direct pricing within 24 hours.
