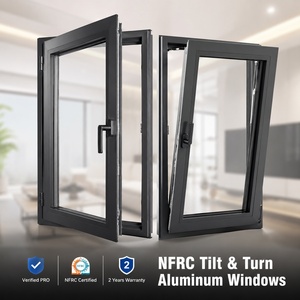

NFRC Black Narrow Frame Thermal Break Tilt Turn Window
- Frame Width: 65mm Ultra-Slim Profile
- Thermal Barrier: PA66GF25 Strip
- Glazing: 6mm+12Ar+6mm Low-E
Product Catalog
Engineering Grade Tilt & Turn Window Systems
Explore our NFRC, Title 24, and CSA-certified aluminum tilt-and-turn fenestration systems manufactured for high thermal efficiency, extreme acoustic dampening, and modern architectural aesthetics.

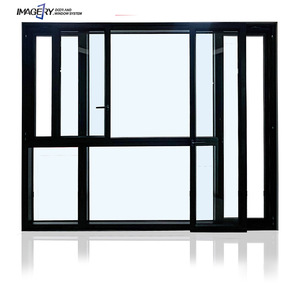

Drifting Sliding Tilt & Turn Double Glazed Low-E Window
- Opening Type: Tilt-Turn & Slide Hybrid
- Acoustic Rating: STC 42 dB
- Hardware: German Siegenia System

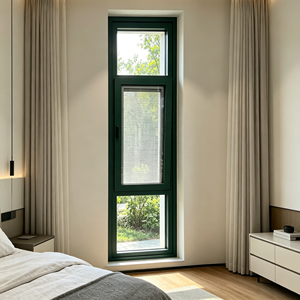

RC4 Weather-Resistant Villa & Sunroom Tilt Turn Window
- Security Rating: RC4 Anti-Burglary
- Wind Load: 4500 Pa Pressure Test
- Finishes: AkzoNobel Powder Coat

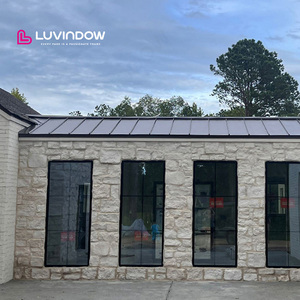

Slim Line High Efficiency NFRC Low-E Tilt Turn Window
- U-Factor: 0.20 Btu/h·ft²·°F
- Alloy Standard: 6063-T6 Extrusion
- Glass: Triple-Pane Warm Edge

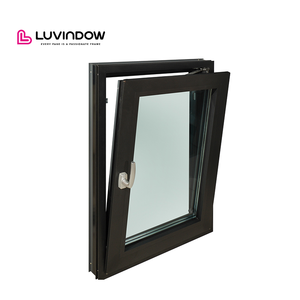

Architectural Villa Tilt Turn Window with German Hardware
- Locking Mechanism: Multi-Point Drive
- Water Resistance: 700 Pa Tested
- Design: Flush Sash Exterior

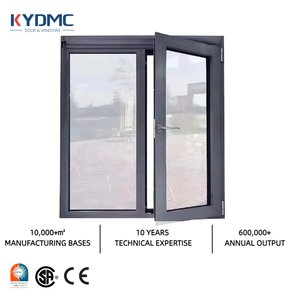

American Market NFRC Heat Insulation Tilt Turn Window
- Compliance: NFRC & ENERGY STAR
- Insulation: Aerogel Infused Cavity
- Screen: Integrated Fly Screen

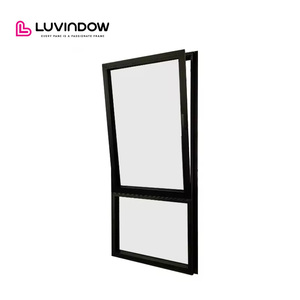

Slimline Large Glass Panoramic Residential Tilt Turn Window
- Glass Area: Up to 92% Ratio
- Sightline: 48mm Minimalist Frame
- Sealant: Triple EPDM Gaskets

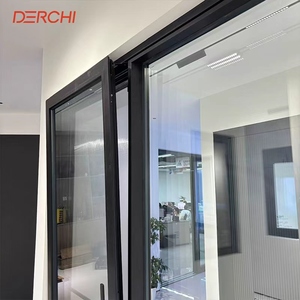

California Title 24 Compliant Energy-Saving Tilt Turn Window
- Energy Code: CA Title 24 Certified
- SHGC Rating: 0.21 Target
- Frame Wall: 2.0mm Heavy Duty
Technical Whitepaper · Section 1
Understanding Dual-Action Tilt & Turn Kinematics in High-Rise & Residential Architecture
In modern fenestration engineering, the Aluminium Tilt and Turn Window represents the pinnacle of dual-functionality, merging European operational versatility with North American performance requirements. Unlike traditional side-hung casement or horizontal sliding windows, a tilt-and-turn system utilizes an advanced perimeter gearbox driven by a single intuitive handle. Rotating the handle 90 degrees enables inward turn action (side-hinged casement opening up to 180 degrees), allowing maximum air exchange and facilitating safe exterior glass maintenance from inside the room. Rotating the handle 180 degrees upwards activates the inward tilt mode (top-hinged bottom-venting opening limited to 100mm–150mm), creating a natural draft-free chimney ventilation effect while keeping the building securely protected against rain and forced entry.
From a mechanical engineering perspective, the structural superiority of China-manufactured aluminum tilt-and-turn windows relies on multi-chambered 6063-T6 aluminum extrusion alloys coupled with high-density continuous polyamide (PA66GF25) thermal barrier strips. By decoupling the exterior aluminum shell from the interior sash profile, thermal bridging is effectively eliminated. This structural design achieves thermal transmittance values down to U-Factor 0.18–0.24 Btu/h·ft²·°F (1.0–1.4 W/m²K) when equipped with argon gas-filled, low-emissivity (Low-E) triple glazing units.
Technical Fenestration Comparison Matrix for B2B Procurement
To assist architectural specifiers, general contractors, and hardware importers in selecting the ideal window systems, the following matrix compares structural and physical performance criteria across standard window typologies:
| Window Typology | Thermal U-Factor (Btu/h·ft²·°F) | Air Infiltration (ASTM E283) | Water Resistance (ASTM E331) | Sound Transmission (STC Rating) | Burglar Security (EN 1627) |
|---|---|---|---|---|---|
| Thermal Break Tilt & Turn Window | 0.18 - 0.24 (Superior) | < 0.01 cfm/ft² (A3 Class) | 700 Pa - 1050 Pa (E1050) | 38 - 45 dB (High Acoustic) | RC2 / RC3 / RC4 Rated |
| Standard Outward Casement | 0.28 - 0.35 (Moderate) | < 0.06 cfm/ft² | 450 Pa - 600 Pa | 32 - 36 dB | RC1 / RC2 Rated |
| Horizontal Sliding Window | 0.38 - 0.45 (Low) | < 0.15 cfm/ft² | 250 Pa - 350 Pa | 26 - 30 dB | Basic Latch Only |
| Top-Hung Awning Window | 0.26 - 0.32 (Moderate) | < 0.05 cfm/ft² | 400 Pa - 500 Pa | 30 - 34 dB | RC1 Rated |
Technical Whitepaper · Section 2
Future B2B Procurement Trends in Global Architectural Fenestration
As international building standards shift toward zero-net-energy (NZE) goals and stringent carbon reporting, commercial B2B buyers must align their procurement strategies with four critical market trends:
1. Decarbonization & Recycled Alloy Sourcing
Global real estate developers increasingly demand Environmental Product Declarations (EPDs). Leading Chinese OEMs are adopting low-carbon aluminum billets produced via hydroelectric power, utilizing 6063-T6 aluminum with up to 75% post-consumer recycled content to minimize embodied carbon footprints.
2. Integration with Building Management Systems (BMS)
Smart buildings require windows that communicate with HVAC units. Motorized tilt-and-turn actuators equipped with hidden linear motors and automatic rain sensors enable auto-ventilation during favorable climatic conditions, reducing mechanical air conditioning loads by up to 18% annually.
3. Ultra-Narrow Sightlines & Concealed Hardware
Modern luxury architecture favors maximal daylighting. Procurement is shifting toward narrow-frame profiles (down to 48mm visible width) with fully concealed hinges capable of supporting sash weights up to 150kg without compromising structural deflection standards.
Enterprise Excellence
Why Partner with BrioWindow Technology Co., Ltd.
Headquartered in Nanhai District, Foshan City — China's premier aluminum manufacturing cluster — BrioWindow Technology Co., Ltd. combines over a decade of fenestration engineering experience with rigid export quality control.
Rigorous Testing & Certifications
Our complete window and door systems adhere to international building standards. We provide verified testing for NFRC (USA), California Title 24 compliance, CSA A440 (Canada), and European CE standards, guaranteeing seamless site inspections and building code approval.
Precision Engineering & Hardware
We utilize high-grade 6063-T6 extrusion alloys, Technoform polyamide thermal breaks, continuous EPDM weatherstripping gaskets, and multi-point locking gearboxes from German partners (Siegenia, Roto) or heavy-duty custom Brio Hardware systems.
30-Year After-Sales Quality Assurance
We stand behind our manufacturing durability with a comprehensive 30-year warranty on aluminum profiles and surface finishes. Our dedicated export engineering team provides complete shop drawings, CAD/BIM modeling, and remote installation guidance.
Verified Quality System & Compliance Certificates
ISO9001 Management
NFRC Thermal Certification
CSA A440 Compliance
CE European Standard
Wind Pressure Test Report
Sourcing SOP
6-Step OEM/ODM Procurement Workflow
How BrioWindow ensures flawless execution from architectural concept drawings to international sea freight delivery.
01
Architectural Drawing & Schedule Submission
Clients provide opening schedules, elevation plans, target U-values, wind pressure zones, and glass specs.
02
Engineering Proposal & Structural Calculation
Our engineering team performs wind load calculations (ASTM E330) and generates detailed CAD shop drawings.
03
Custom Corner & Profile Mockup Approval
Physical corner samples, finish swatches (Kynar 500 PVDF or Powder Coat), and hardware samples are dispatched for sign-off.
04
Precision CNC Machining & Glue Injection
Extrusions undergo automated CNC cutting, corner-crimping with dual-component resin injection, and frame assembly.
05
Air, Water & Operational Factory Testing
Completed units are randomly sampled and subjected to hydrostatic chamber pressure testing prior to export packing.
06
Plywood Crate Packing & Ocean Logistics
Windows are packed with protective film, foam corner guards, fully enclosed steel-reinforced wooden crates, and moisture absorbers.
Frequently Asked Questions
B2B Sourcing & Technical FAQ
Critical answers for window importers, developers, and project contractors evaluating Chinese manufacturers.
What profile thickness and alloy standards does BrioWindow use for tilt-and-turn systems?
We exclusively manufacture engineered windows using primary 6063-T6 structural aluminum extrusion alloys (and 6060-T66 for ultra-slim series). Profile wall thickness ranges between 1.8mm and 2.2mm for residential and high-rise applications, strictly exceeding national GB 5237 and international ASTM standards to prevent sash sagging over extended operational cycles.
How do Chinese tilt-and-turn windows meet North American (NFRC/Title 24) and Australian (AS2047) codes?
BrioWindow designs window systems specifically tailored to regional code standards. For North America, we incorporate NFRC-validated low-emissivity glass packages, Technoform warm-edge spacers, and multi-chambered polyamide thermal breaks to achieve low U-factors and target SHGC values required by California Title 24 and Energy Star. For Australia, our systems undergo AS2047 testing for structural deflection, air infiltration, and water penetration resistance.
Can BrioWindow manufacture custom sizes, non-standard shapes, and integrated screen options?
Yes, 100% of our production is customized per project drawings. We manufacture oversized tilt-and-turn units up to 1800mm in width and 2800mm in height per sash. Integrated insect screens include stainless steel security mesh (304 grade), invisible roll-up screens, and magnetic detachable mosquito nets.
What hardware brands are available, and what anti-burglary ratings do you achieve?
We offer premium hardware configurations including original German Siegenia, Roto Frank, Hoppe handles, as well as high-performance proprietary Brio architectural hardware. Utilizing multi-point mushroom-head locking cams around the entire perimeter, our tilt-and-turn windows achieve European EN 1627 RC2, RC3, and optional RC4 security ratings against mechanical intrusion.
What is the typical production lead time and ocean shipping protection for overseas orders?
Standard production lead time is 25 to 35 days following CAD shop drawing sign-off and deposit receipt. For ocean shipping, windows are wrapped with protective plastic film, guarded with thick EPE foam corners, and packed in non-fumigation fumigated-free plywood crates equipped with forklift entry slots and internal moisture absorbers to guarantee zero transit damage.
